High Quality Aluminum Window Screen Mesh

Aluminium Window Screens

Aluminium Window Screens are woven from aluminum-magnesium alloy wires, also known as "aluminum-magnesium alloy screens". The color of aluminum alloy window screen is silver white. Characterized by light weight, good toughness, corrosion resistance, high temperature resistance and long service life. It does not rust and become mouldy even in a humid environment. Widely used in residential and various constructions for window screening projects.

Inquire Now Download

Product Description

Aluminium Window Screens

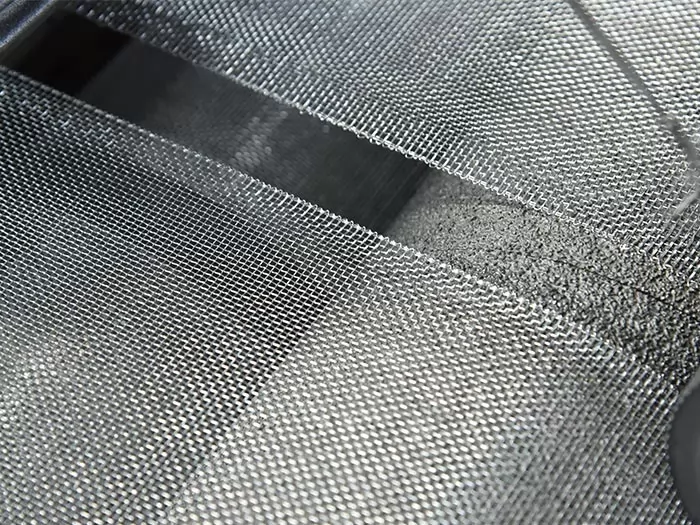

JiuShen Aluminium Window Screens are woven from aluminum-magnesium alloy wires, also known as "aluminum-magnesium alloy screens". The color of aluminum window screens is silver white. Characterized by light weight, good toughness, corrosion resistance, high temperature resistance and long lifespan, it does not rust and become mouldy even in a humid environment. The aluminium window screens weave from aluminum wire is widely used as door and window shielding wire in residential and commercial buildings to keep out bugs and insects. Click here get more choices of aluminum mesh screen!

Information of Jiushen Aluminium Window Screens

Standards: Q/EQl-40-2007 ASTM B117-09 ASTM E2016-15

Weaving Pattern: Plain Weaving selvaged edge/rough selvedge, cross (skein) weave

Material: 5154A(H39/H19)

Precision Craftsmanship: Superior Aluminum Mesh Screen Manuafacturer|JiuShen

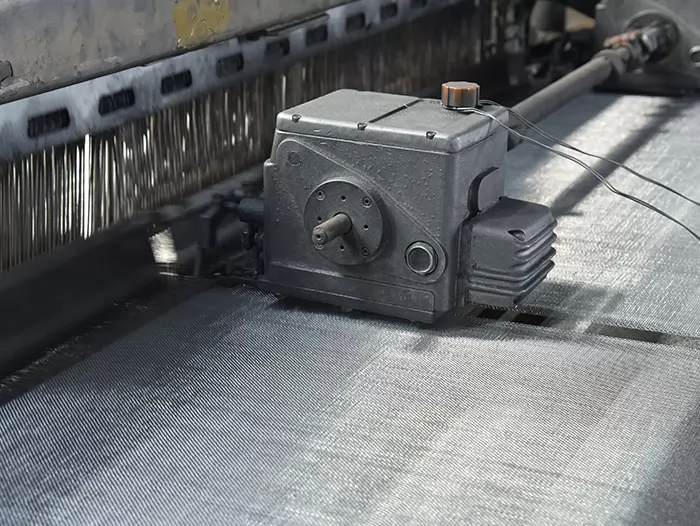

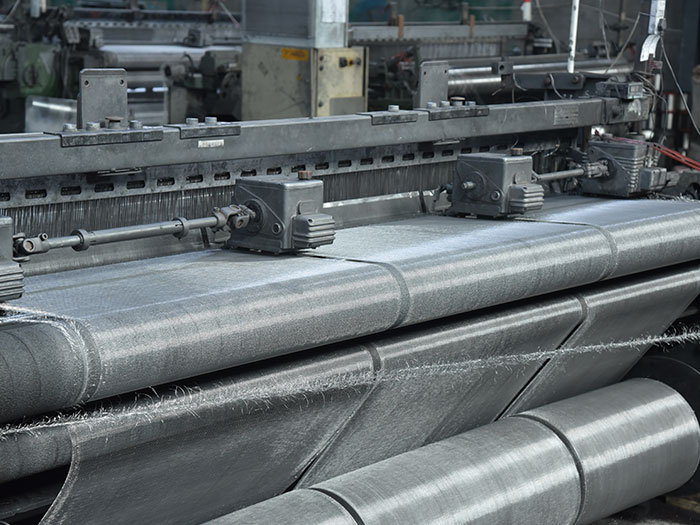

●Bulk Production Capability: Jiushen excels in aluminum mesh screen production with a vast workshop of 15,000 square meters and logistics covering 5,000 square meters. Featuring over 100 specialized weaving equipment, the assembly line layout ensures high operational efficiency, positioning Jiushen as an industry leader. We adopt an order-driven approach, executing BOMs, minimizing waste, and maintaining safety inventory for JIT supply. With 24/7 operations in key processes, Jiushen's TPM management and a skilled team allow for continuous high-efficiency operation and innovative research and design. ●Rigorous Quality Control: Quality control includes the following links: ISO 9001 quality management system, raw material inspection management, finished products inspection management, traceability management system, raw material inspection management, production process management

Under the ISO9001: 2015 quality management system, Jiushen ensures top-notch quality control. The company's comprehensive quality control department adheres to strict standards in materials, processes, and delivery. This includes inspections based on industry standards and customer requirements. Jiushen's traceability system, centered around the order number, generates product traceability codes for transparency. With a three-level quality control system, electronic error prevention measures, and TQM model implementation, Jiushen achieves a remarkable pass rate of over 99% for finished products. Thorough inspections cover Stainless Steel Window Screen, High Visibility Flame-Retardant Stainless Steel Window Screen, aluminium window screening, aluminum mesh screen, aluminium mesh for windows, aluminum window mesh, aluminium security mesh, and aluminum fly screen mesh, with ultrasonic cleaning as needed. Testing instruments like spectrometers, micrometers, and more ensure product reliability!

●Wide Application of Aluminium Window Screen

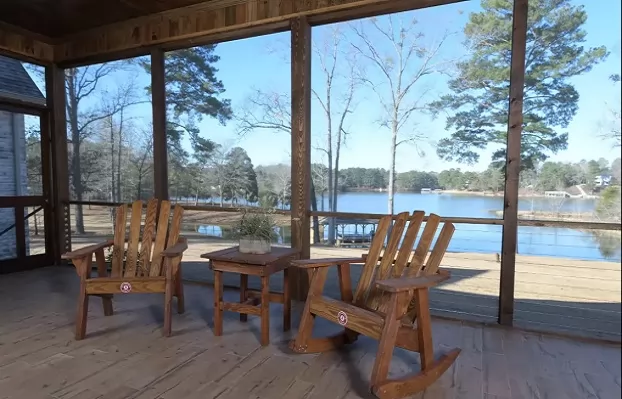

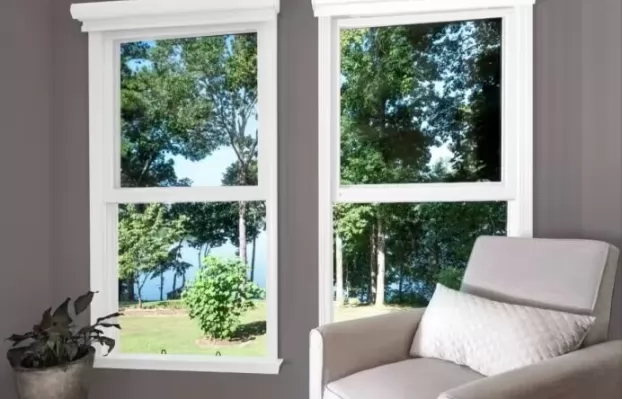

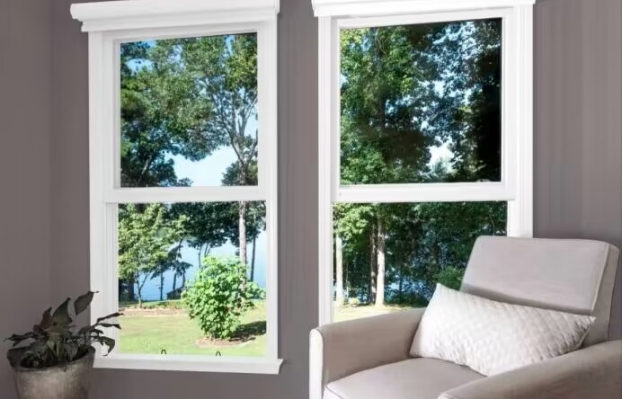

Aluminium Window Screens are widely applied in variety of window screening projects, as well insect screening or shade against flies and mosquito, machinery protection, ventilation material and receiving signals.

1. Bug Defense with Aluminum Mesh Screen: Jiushen's aluminum window screens, also known as aluminium mesh for windows, act as a formidable barrier against insects, ensuring a bug-free environment.

2. Dust and Debris Guardian: These screens, featuring aluminum fly screen mesh, effectively filter out dust and debris, maintaining a cleaner living space by preventing external pollutants from entering.

3. Privacy Fortress with Aluminium Security Mesh: Jiushen's window screens, reinforced with aluminium security mesh, provide an added layer of privacy, allowing you to enjoy your space without prying eyes.

4. Durability Extraordinaire: Built with resilience in mind, Jiushen's aluminum window mesh stands strong against various weather conditions, from rain to sun and wind.

Why buyers choose aluminium window screen mesh

Lightweight but durable

A smart balance of low weight, good toughness and long-term dimensional stability for everyday window and door screening.

Corrosion resistant

Suitable for humid environments where clean appearance, rust resistance and long service life are important.

Uniform mesh opening

Controlled weaving helps create neat, even apertures for consistent airflow, insect protection and a more professional finished look.

More finish flexibility

Available in bright finish or eco-friendly electrostatic coating with black, gray, silver and customized colors.

Specification of Aluminium Window Screens

High Quality Aluminum Window Screen Mesh

Item	Aluminum Window Screening
Material	Aluminum 5154
Specification	18x16 / 0.28mm 18x16 / 0.24mm 18x24 / 0.22mm 18x16 / 0.20mm (can be customized)
Width	610mm / 762mm / 810mm / 914mm / 1067mm / 1220mm / 1524mm / 1830mm (can be customized)
Length	2m / 15m / 30m / 60m / 100m / 150m / 300m (can be customized)
Color	Black / Gray / Silver (can be customized)
Finish	Eco-friendly electrostatic coating / SS Finish / Bright Finish
Opening	Square hole / Round hole
Characteristics	Light, high transparency, soft, uniform opening, coating does not fall off, no fading within 10 years

High Quality Aluminum Window Screen Mesh

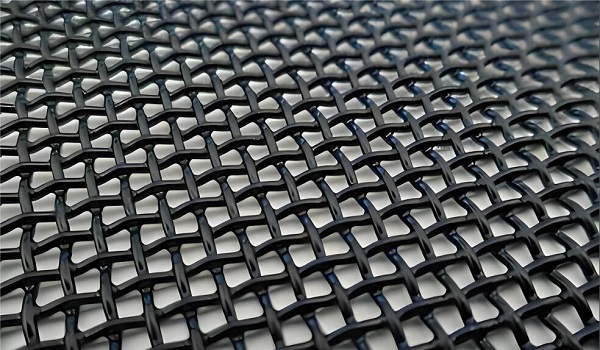

Item	Heavy Duty Aluminum Window Screening
Material	Aluminum 5154
Specification	16x16 / 0.38mm 14x14 / 0.40mm 12x12 / 0.56mm (can be customized)
Width	610mm / 762mm / 810mm / 914mm / 1067mm / 1220mm / 1524mm / 1830mm (can be customized)
Length	2.5m / 15m / 30m / 60m / 100m (can be customized)
Color	Black / Gray / Silver (can be customized)
Finish	Eco-friendly electrostatic coating
Opening	Square hole / round hole
Characteristics	High strength, no deformation, uniform opening, coating does not fall off, no fading within 10 years

Jiushen Window Screening Quality Characteristics
Item	Advantages	Control method
Flatness	No bubbling, arching	1. Weaving process control 2. 100% leveling control of semi-finished products 3. 100% leveling control of finished product
Color	The surface color is consistent in all angles	1. Special coating control 2. Coating thickness and uniformity control
Defect control	per 30㎡≤1	1. 100% inspection of semi-finished products 2. 100% inspection of finished products 3. Special production and correction equipment

Why source from Jiushen Wire Mesh

Jiushen is not only a seller of aluminium window screen mesh, but also a long-term wire weaving manufacturer with in-house production, testing and continuous process upgrading.

Manufacturing base

20,000㎡ company area, 15,000㎡ production workshop and nearly 100 sets of weaving-focused equipment support stable bulk output.

Large-scale supply

Yearly output reaches 8 million square meters, with part of the production process running 24 hours.

Customization capability

Support for standard production, private customization and non-standard product research and development.

Quality system

ISO9001:2015 management system with strict controls covering raw materials, production process, finished products and delivery.

Inspection capacity

Spectrometer, micrometer, universal tensile machine, salt spray tester, optical magnifier and other testing equipment support product verification.

Traceability

Every order can be tracked through coding records based on supplier code, product code, equipment code and serial number.

To get a faster and more accurate quotation for aluminium window screen mesh, please send:

Application or market use
Mesh count and wire diameter
Required width and roll length
Color and finish requirement
Standard or heavy-duty version
Estimated quantity and destination country

Frequently asked questions

What material is your aluminium window screen mesh made from?

Jiushen aluminium window screen mesh is woven from 5154 aluminum alloy wire, also described as aluminum-magnesium alloy wire.

What is the most common mesh for window screening?

The common standard option is 18×16 mesh, while other common options include 18×24, 16×16, 14×14 and 12×12 depending on visibility, strength and application requirements.

Can you provide customized width, length, color and finish?

Yes. Jiushen supports private customization, including customized widths, lengths, colors and finish options for different market or project needs.

Is aluminium window screen mesh suitable for humid environments?

Yes. Aluminium window screen mesh offers corrosion resistance and does not rust or become mouldy easily in humid conditions, making it a practical choice for many everyday environments.

How does Jiushen control product quality?

Jiushen uses ISO9001:2015 management, raw material inspection, process control, finished product inspection, traceability records and testing instruments such as spectrometers, micrometers and tensile machines.

When should I choose heavy-duty aluminium screen?

Choose heavy-duty aluminium window screen when your project needs thicker wire, higher strength and better deformation resistance than standard insect screening.
