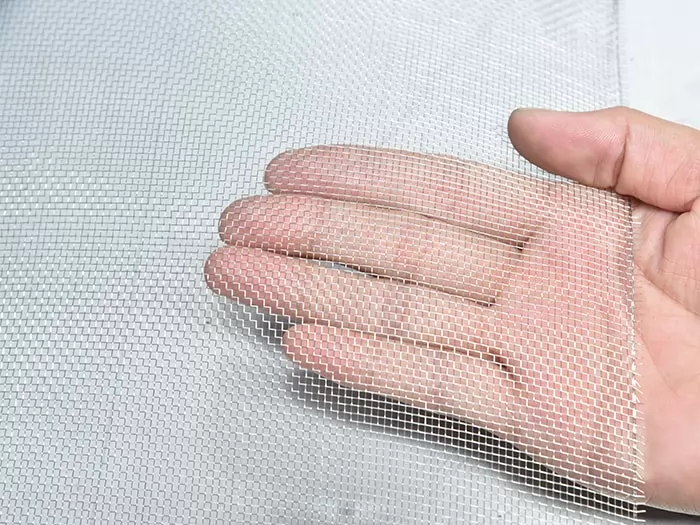

Stainless Steel Window Screen, also known as stainless steel insect screen, stainless steel fly screen, is woven from durable high quality 304, 304L, 316, 316L stainless steel wires. Which is more durable and much stronger than the standard insect screen. It allows superior airflow and meets the high standard of insect protection. The application is not limited to windows, doors & porches, but also can be used as supportive layer for filters, as well as used in livestock farms epidemic prevention, orchard planting protection & window screen projects etc.
Jiushen stainless steel window screen is precision-woven window screen mesh for reliable insect protection, ventilation and long-term dimensional stability. Available in stainless steel 201, 304, 304L, 316 and 316L, it is suitable for window and door manufacturers, screen distributors, building contractors, property developers and agricultural projects requiring a stronger alternative to conventional soft insect screening.
Standard insect screen, heavy-duty screen and high-tensile high-visibility configurations are available. Jiushen can customize the stainless steel grade, mesh count, wire diameter, roll width, roll length, color, coating and edge treatment according to the installation environment and purchasing requirements.
Need an accurate quotation? Send us the required material grade, mesh count, wire diameter, roll size, color and order quantity. Jiushen will help confirm a practical specification before production.
Stainless steel screening combines insect control with the strength, corrosion resistance and shape retention of woven metal wire. It allows air and natural light to pass through while limiting the entry of mosquitoes, flies, wasps and other common insects.
Corrosion resistance: Suitable for humid, rainy and outdoor environments, with 316 and 316L options available for coastal or chloride-exposed projects.
Stable mesh openings: Precision weaving helps maintain consistent aperture size for predictable insect protection and appearance.
Good airflow and visibility: Fine-wire configurations reduce visual obstruction while maintaining ventilation.
High mechanical strength: Metal wire provides greater abrasion and deformation resistance than many soft non-metal screening materials.
Shape retention: Properly installed stainless steel screening resists sagging and stretching during long-term use.
Easy maintenance: The smooth mesh surface can be cleaned with fresh water and mild detergent.
Multiple configurations: Standard insect control, heavy-duty protection and high-visibility screening can be supplied for different projects.
Mesh count describes the number of openings per linear inch in the warp and weft directions. Wire diameter affects strength, visibility, airflow and the final weight of the screen. A higher mesh count is not automatically better; the correct combination depends on the target insect, required visibility and expected physical contact.
| Screen Type | Available Configurations | Recommended Uses | Selection Priority |
|---|---|---|---|
| Standard Stainless Steel Insect Screen | 16 × 16, 18 × 16, 18 × 18 and 22 × 22 mesh | Residential and commercial windows, doors, porches and ventilation openings | Balanced insect control, airflow and durability |

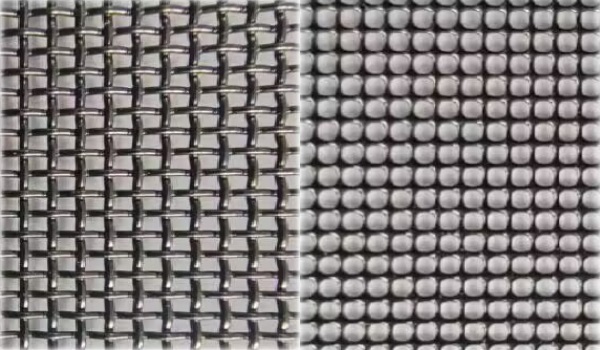

| Heavy-Duty Stainless Steel Screen | 11 × 11, 14 × 14 and 16 × 16 mesh with 0.40–0.80 mm wire | High-traffic buildings, animal enclosures and projects requiring greater physical resistance | Wire strength and impact resistance |

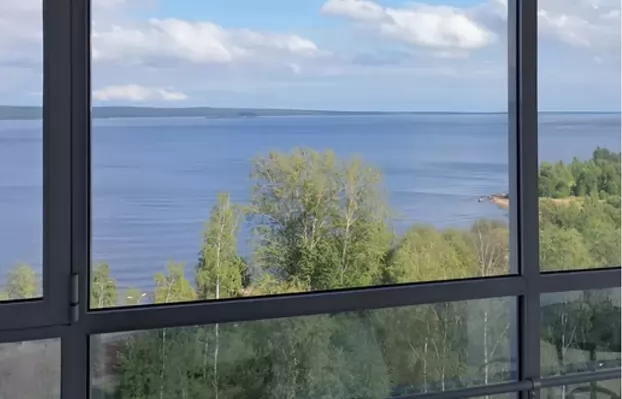

| High-Tensile High-Visibility Screen | 20 × 18 and 22 × 22 mesh with 0.09–0.11 mm wire | Windows and doors where outward visibility and reduced visual obstruction are important | Fine wire, airflow and appearance |
| Product | Stainless Steel Window Screen / Stainless Steel Insect Screen |
|---|---|
| Available Materials | SS201, AISI 304, 304L, 316 and 316L |
| Weaving Pattern | Plain weave, selvaged edge, rough selvedge or cross weave according to specification |
| Standard Opening | Uniform woven square opening; non-standard requirements should be confirmed before quotation |
| Available Colors | Black, gray and silver; custom colors subject to technical confirmation |
| Surface Option | Natural stainless steel or electrostatic coated finish according to order requirements |
| Inspection | Mesh count, wire diameter, width, length, opening uniformity, flatness, coating and appearance |
| Customization | Material, mesh count, wire diameter, width, length, color, edge treatment and packaging |
| Material | Mesh Count | Wire Diameter | Available Widths | Available Lengths |
|---|---|---|---|---|
| AISI 304 / 316 | 18 × 18 | 0.23 mm | 610, 762, 810, 914, 1067, 1220, 1524 and 1830 mm | 2, 15, 30, 60, 100 and 150 m |
| AISI 304 / 316 | 18 × 16 | 0.18 mm | ||
| AISI 304 / 316 | 22 × 22 | 0.18 mm | ||
| AISI 304 / 316 | 16 × 16 | 0.30 mm |
| Material | Mesh Count | Wire Diameter | Available Widths | Available Lengths |
|---|---|---|---|---|
| AISI 304 / 316 | 11 × 11 | 0.80 mm | 610, 762, 810, 914, 1067, 1220 and 1524 mm | 2, 15, 30 and 60 m |
| AISI 304 / 316 | 14 × 14 | 0.60 mm | ||
| AISI 304 / 316 | 16 × 16 | 0.40 mm | ||
| AISI 304 / 316 | 14 × 14 | 0.70 mm |
| Material | Mesh Count | Wire Diameter | Available Widths | Available Lengths |
|---|---|---|---|---|
| AISI 304 | 20 × 18 | 0.11 mm | 610, 762, 810, 914, 1067, 1220, 1524 and 1830 mm | 2, 15, 30, 60, 100 and 150 m |
| AISI 304 | 22 × 22 | 0.09 mm |
The dimensions above are Jiushen's commonly supplied configurations. Other combinations may be developed or customized after technical review. Final manufacturing tolerance and inspection requirements should be agreed upon before order confirmation.
| Grade | Recommended Environment | Main Consideration |
|---|---|---|
| SS201 | Cost-sensitive projects in mild, low-corrosion environments | Economical option, but less suitable for coastal or chloride-rich exposure |
| AISI 304 | General residential, commercial and industrial screening | Balanced corrosion resistance, strength and procurement cost |
| AISI 304L | Projects requiring a low-carbon 304 grade | Suitable where fabrication or project documentation specifies 304L |
| AISI 316 | Coastal, humid and chloride-exposed locations | Higher corrosion resistance than 304 in demanding environments |
| AISI 316L | Coastal or chemically demanding applications requiring a low-carbon grade | Selected when both enhanced corrosion resistance and low carbon content are specified |
For inland residential and commercial buildings, 304 is normally the practical starting point. For buildings near the sea, swimming-pool environments or projects exposed to salt-containing air, 316 or 316L should be considered. Jiushen can review the installation environment before recommending a material.

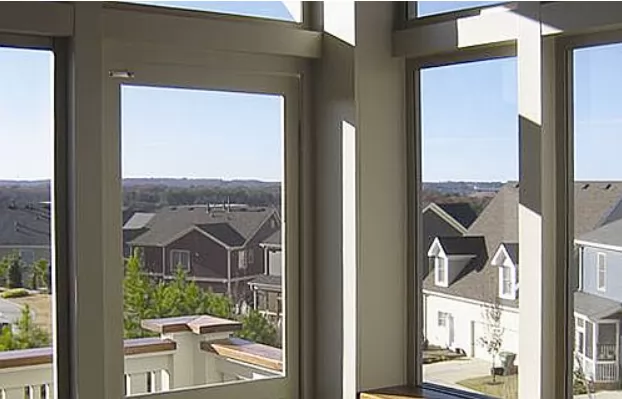

Residential buildings: Window, door, porch and ventilation screening for houses and apartments.
Commercial properties: Screening for offices, hotels, retail buildings and property-management projects.
Window and door manufacturing: Stainless steel screen rolls for fabrication into finished window and door systems.
Coastal construction: 316 or 316L mesh for projects requiring improved chloride corrosion resistance.
Agricultural facilities: Insect barriers for livestock buildings, orchard structures and protected planting areas.
Industrial ventilation: Mesh guards that help limit the entry of insects and larger airborne debris.
Filter support: Woven stainless steel mesh used as a supporting layer where the selected aperture and wire diameter meet the filtration design.
Heavy-duty screening: Thicker-wire mesh for high-traffic areas, animal contact and projects requiring increased physical resistance.
Heavy-duty stainless steel mesh may improve resistance to impact, cutting and deformation. However, burglary resistance, fall protection and other safety performance depend on the complete assembly, including the frame, fasteners, locks and installation method. The mesh should not be described as a certified security system unless the complete system has passed the required project tests.
Hebei Jiushen Wire Weaving Co., Ltd. has focused on wire weaving since 1998. The company operates a 20,000 m² site, including approximately 15,000 m² of production workshop and 5,000 m² of logistics space.

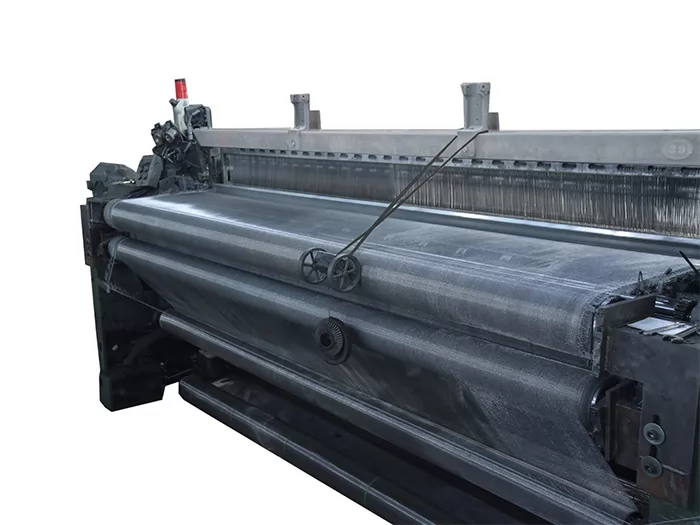

100+ production and auxiliary machines: Equipment supports weaving, inspection, coating, slitting, joining and packaging processes.
Approximately 8 million m² annual output: Company-wide capacity supports repeat orders and large-volume supply programs.
Up to 2,700 mm single weaving width: General wide-width manufacturing capability is available, subject to the selected mesh and wire configuration.
Standard and custom production: Jiushen supports standard specifications, private customization and non-standard product development.
Integrated production flow: Raw material storage, inspection, warping, weaving, inspection, coating, slitting, packaging and delivery are managed within the production system.
Technical process support: The production team can evaluate new materials, specifications and processes according to the application.
Learn more about Jiushen's production capacity and wire weaving experience.
Jiushen operates an ISO 9001:2015 quality management system. Inspection records and traceability information are organized by order so that material, production and finished-product data can be reviewed when required.
Inspect the raw material. Stainless steel wire can be checked using a spectrometer, micrometer and universal tensile testing equipment. Raw material spools are identified and managed by order.

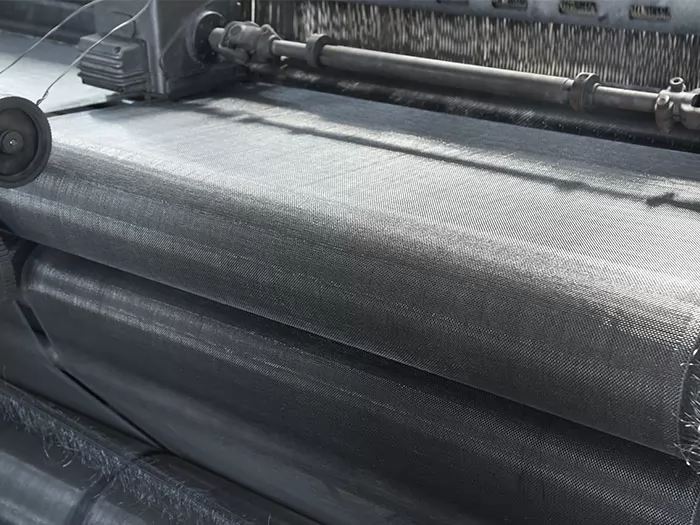

Control the weaving process. Production follows order instructions and a three-level inspection system covering operator self-inspection, monitoring inspection and workshop-supervisor inspection.

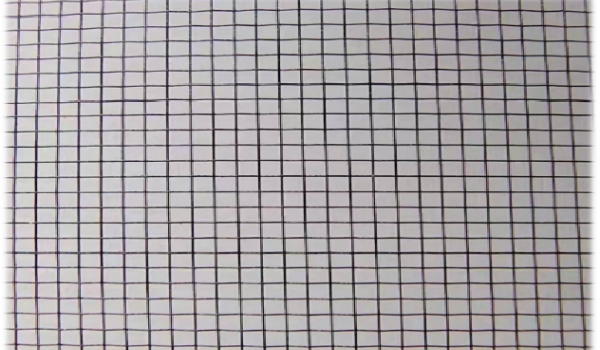

Check mesh flatness and uniformity. Semi-finished mesh is inspected for irregular openings, arching, bubbling and surface deformation.
Inspect the finished roll. Mesh count, width, length, aperture, mesh surface, coating and appearance are checked according to the order specification.
Create traceability records. Supplier, product, equipment and production information can be linked to the order number and reflected in order files or packaging labels.
Available testing equipment includes a spectrometer, micrometer, universal tensile tester, salt spray tester, impact tester, anti-fatigue tester and optical magnification equipment. ASTM E2016-based inspection requirements, coating tests and customer-specific standards can be discussed during order confirmation.
View Jiushen's complete quality control process.
Jiushen can produce stainless steel window screening according to standard market sizes or project-specific requirements. Available customization includes:
201, 304, 304L, 316 and 316L stainless steel grades
Mesh count and wire diameter combinations
Roll width and roll length
Black, gray, silver and project-specific colors
Natural or electrostatic coated surface options
Selvaged or rough edge configurations
Slitting and project-specific roll preparation
Packaging and traceability labels based on order requirements
Providing complete purchasing information helps Jiushen calculate material usage, production feasibility, packaging and pricing without repeated specification confirmation.
Application: Window, door, porch, ventilation, agricultural screening, filter support or heavy-duty protection.
Installation environment: Indoor, outdoor, coastal, humid, high-traffic or chemically exposed.
Material grade: SS201, AISI 304, 304L, 316 or 316L.
Mesh specification: Mesh count and wire diameter in millimeters or inches.
Roll dimensions: Required width, length and acceptable dimensional tolerances.
Surface requirement: Silver, black, gray, natural finish or coated finish.
Edge and packaging: Edge treatment, roll preparation, labels and packing requirements.
Order details: Required quantity, delivery destination and requested delivery schedule.
AISI 304 is suitable for most general residential and commercial applications. AISI 316 provides improved resistance to chloride corrosion and is usually the better choice for coastal buildings, pool areas and other salt-exposed environments.
Common insect-screen configurations include 16 × 16, 18 × 16 and 18 × 18 mesh. A 22 × 22 mesh has smaller openings and may be selected for smaller insects, but the finer opening can affect airflow. Selection should consider the target insect, wire diameter and required ventilation together.
Heavy-duty stainless steel mesh provides greater resistance to cutting, impact and deformation than standard insect screening. However, certified security performance depends on the complete frame, fasteners, locks and installation system. Mesh alone should not be treated as a certified anti-burglary or fall-protection system.

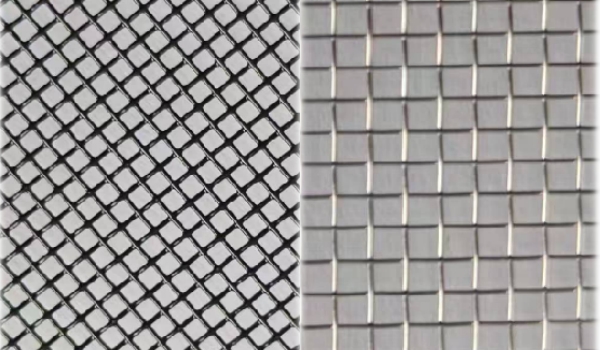

A dark coating can reduce reflected glare and make the mesh less visually prominent when viewed from inside a building. The actual result depends on wire diameter, mesh count, lighting and the viewing distance.
Yes. Jiushen supplies multiple standard widths and lengths and can evaluate custom roll dimensions. Manufacturing feasibility depends on the mesh count, wire diameter, stainless steel grade and required quantity.
Remove loose dust with clean water, then use a soft cloth or brush with mild detergent when required. Rinse thoroughly and avoid abrasive tools or chloride-containing cleaners that may damage the surface or coating.
The main price factors are stainless steel grade, wire diameter, mesh count, roll width, roll length, coating, edge treatment, packaging and order quantity. Thicker wire and higher-corrosion-resistance grades generally require more raw material and increase the product cost.
Inspection and traceability requirements should be confirmed before production. Depending on the order, records can cover material identification, mesh count, wire diameter, roll dimensions, surface appearance, coating and other agreed inspection items.
Tell Jiushen where the screen will be installed and what performance matters most: insect control, coastal corrosion resistance, heavy-duty protection or high visibility. Our team will help you compare material grades and mesh configurations before preparing a quotation.
Contact Jiushen for specifications, customization and factory pricing.
