Plain steel wire mesh is a kind of wire mesh that woven from various kinds of carbon steel wires. The raw materials are generally Q195, but there are also high tensile carbon steel wire, copper coated steel wire and other materials. Plain steel wire mesh is also named as plain steel wire cloth, low carbon steel wire mesh, low carbon steel wire cloth, black wire mesh, black wire cloth and etc.
Plain steel wire mesh is a kind of wire mesh that woven from various kinds of carbon steel wires. The raw material are generally Q195, but also high tensile carbon steel wires, copper coated steel wires and other iron wire materials.It’s one of the most commonly used wire mesh alloys.
Information of Jiushen Plain Steel Wire Mesh
Standard: GB/T 701-2008 ASTM E2016-15 ASTM E2814-18 GB/T 2040-2008 Refer to BG/T or ISO
Material: Q195, Q235, C1006, C1008, 72A, 82B, 65Mn etc.
Weaving Pattern: Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, Herringbone Weave, Reverse Dutch Weave
1. Material Composition:
Made from low-carbon steel, which consists mainly of iron with a small amount of carbon.
Sometimes includes other elements like manganese, but primarily iron and carbon.
2. Weaving and Construction:
Can be woven in various patterns such as plain weave, twill weave, and Dutch weave.
The plain weave is the most common, featuring a simple over-under pattern of the wires.
3. Wire Diameter and Mesh Size:
Available in a wide range of wire diameters and mesh sizes.
Mesh size is determined by the number of openings per inch in both directions.
4. Surface Finish:
Typically has a smooth and uniform surface.
Can be galvanized (coated with zinc) for enhanced corrosion resistance.
5. Mechanical Properties:
High tensile strength and durability.
Good flexibility and ability to withstand significant mechanical stress.
Plain steel wire mesh is widely used in many industries, including extrusion equipment for plastic, rubber, chemical and grain industry, agriculture, filtration and separation for oil,construction and more.
| Plain Steel Wire Mesh: Plain Weave | ||
| Mesh（Inch） | Wire Dia. (mm) | Aperture(mm) |
| 8 | 0.71 | 2.465 |
| 10 | 0.63 | 1.91 |
| 12 | 0.6 | 1.516 |
| 14 | 0.5 | 1.314 |
| 16 | 0.45 | 1.137 |
| 18 | 0.4 | 1.011 |
| 20 | 0.4 | 0.87 |
| 30 | 0.3 | 0.54 |
| 40 | 0.25 | 0.39 |
| 50 | 0.2 | 0.308 |
| 60 | 0.16 | 0.263 |
| 80X70 | 0.135 | 0.19/0.23 |
| OEM is available by contacting us. | ||
| Plain Steel Wire Mesh: Plain Dutch Weave | |
| Mesh（Inch） | Wire Dia. (mm) |
| 12X64 | 0.58X0.40 |
| 14X88 | 0.50X0.33 |
| 24X110 | 0.35X0.25 |
| 30X150 | 0.26X0.17 |
| 40X200 | 0.23X0.14 |
| OEM Service is available | |

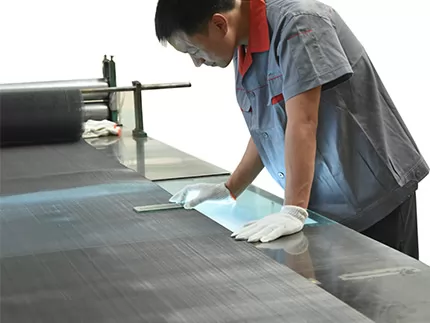

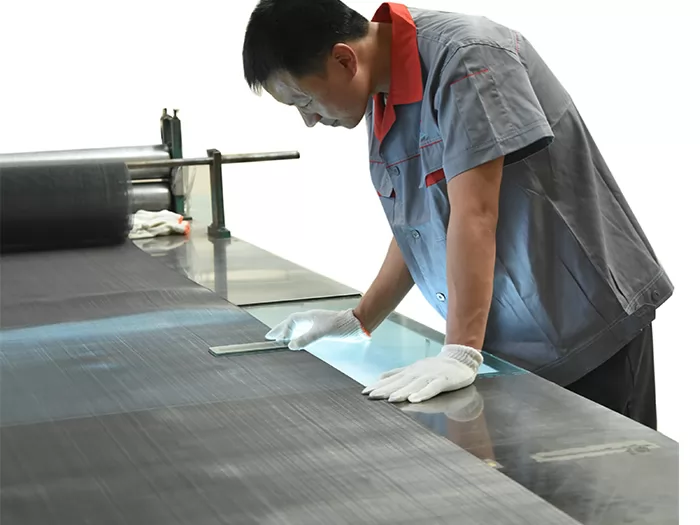

Jiushen employs strict quality control practices to continuously innovate our wire mesh manufacturing process. We offer custom cut, installation-ready plain steel wire mesh, Epoxy Coated Wire Mesh, Stainless Steel Wire Mesh, Window Screen Mesh, Copper Wire Mesh, and Mesh Filters. Additionally, Jiushen Wire Weaving have the ability to handle virtually any production capacity, using lean manufacturing methods to reduce costs and eliminate waste. Feel free to contact us to get the best solution to plain steel wire mesh.
Jiushen uses lean manufacturing methods to handle virtually any production capacity, reducing costs and eliminating waste. We provide wholesale pricing and bulk purchase discounts. Contact us for the best solutions and competitive prices for your wire mesh needs.

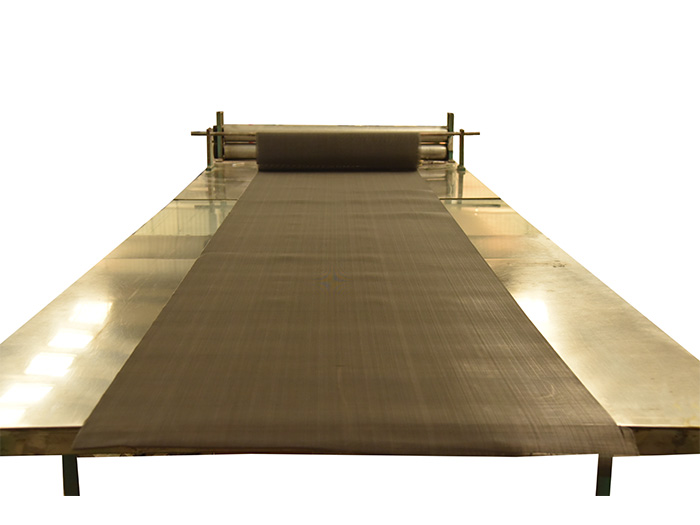

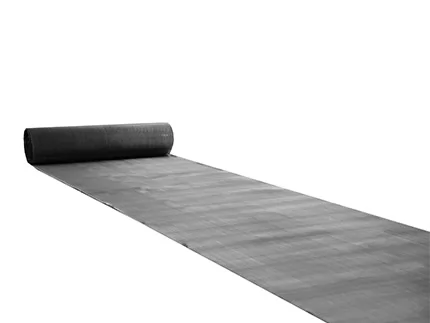

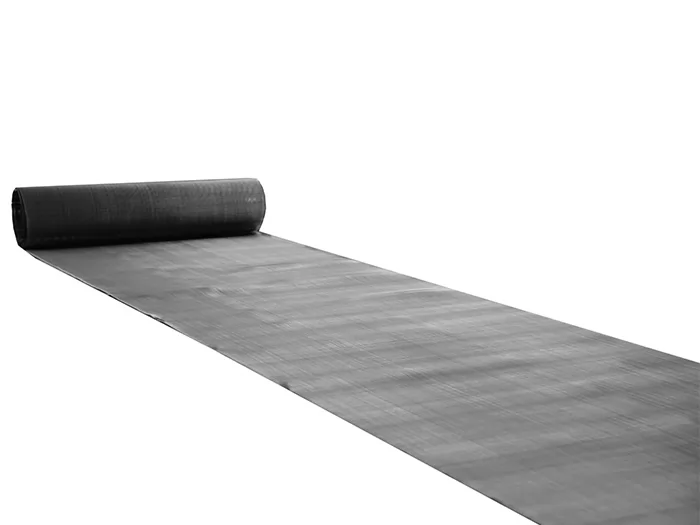

Plain Steel Wire Mesh
