Epoxy Coated Aluminium Screen Mesh

Jiushen offers a wide range of high quality, cost-effective epoxy coated aluminium mesh designed to handle challenging environments. Each coating is precision applied and covers the entire surface area of the aluminum wire mesh for strength and durability.

Inquire Now

Product Description

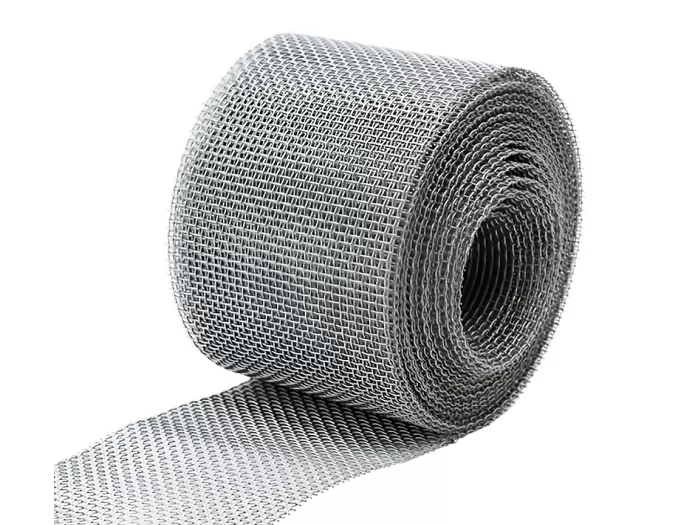

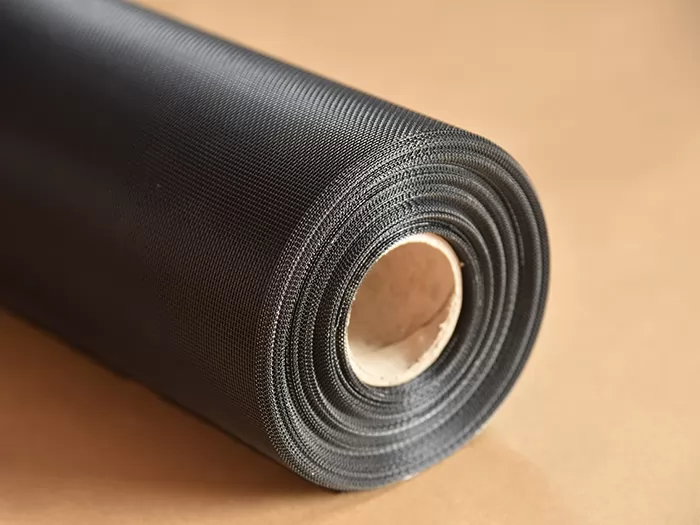

Epoxy Coated Aluminum Screen Mesh

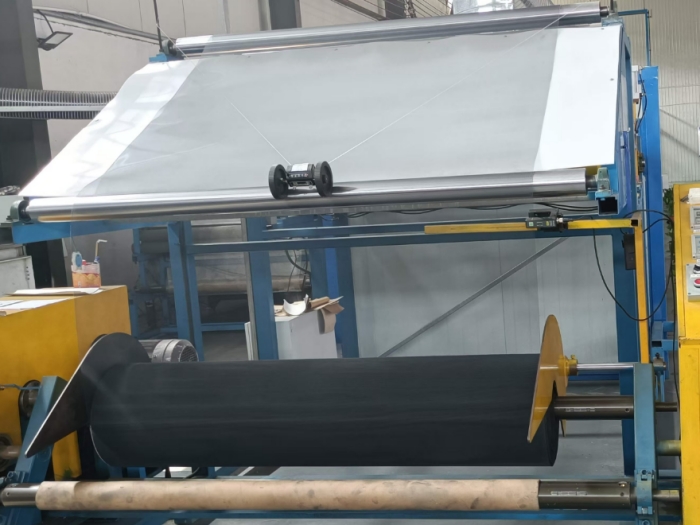

Epoxy coated aluminum screen mesh is made by using the principle of electrostatic spraying to absorb eco-friendly epoxy resin powder on the surface of the aluminum wire mesh, after a certain time of high temperature curing, the epoxy resin powder is melted and covered on the aluminum mesh, so a dense protective layer is formed.

Standards: GB/T 17492-2019

Weaving pattern: plain weave, cut edge/folded edge

Application of Jiushen Epoxy Coated Aluminum Screen Mesh

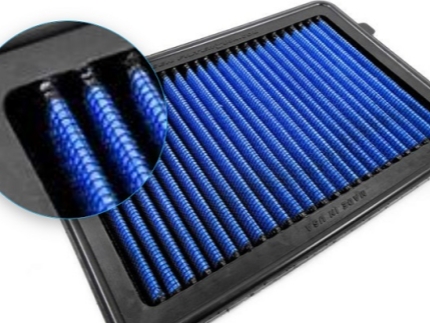

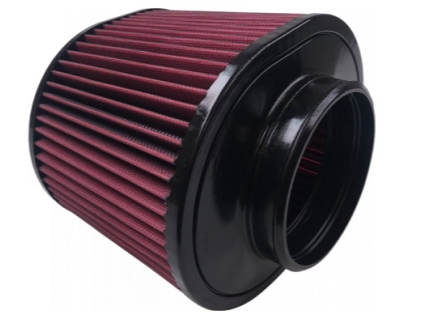

Engine Intake Air Filters: The epoxy coated aluminum screen mesh is widely utilized in the production of air filters for engine intake systems, known as engine intake air filters. These high-performance air filters, which use epoxy powder coated aluminum screen as a supporting layer, provide more airflow compared to traditional paper air filters. They are washable, reusable, and durable for the lifespan of vehicles. Particularly for motor racing, these filters must be lightweight and made from the best raw materials to improve performance. Epoxy coated aluminum wire mesh ensures protection against petrol fumes and oxidation due to air humidity.

HVAC Air Filters: Beyond engine intake applications, epoxy coated aluminum mesh is also extensively used in HVAC production facilities to manufacture air filters designed for industrial, commercial, home, and data center markets. This versatility makes it an ideal choice for various environments requiring efficient and reliable air filtration.

Flame Arresters/Fire Arresters/Spark Arresters: Additionally, the 30/0.3 specification of epoxy coated aluminum screen mesh finds application in the automotive industry for producing flame arresters/fire arresters/spark arresters. This specialized use enhances safety measures by preventing flames or sparks from passing through, making it indispensable for specific automotive components where fire safety is critical.

For more applications, please feel free to reach out for details.

Features of Jiushen Epoxy Coated Aluminum Screen Mesh

Fixed Interweaving Points: After epoxy coating, the interweaving points of the aluminum mesh are fixed, and the warp and weft wires are vertical.

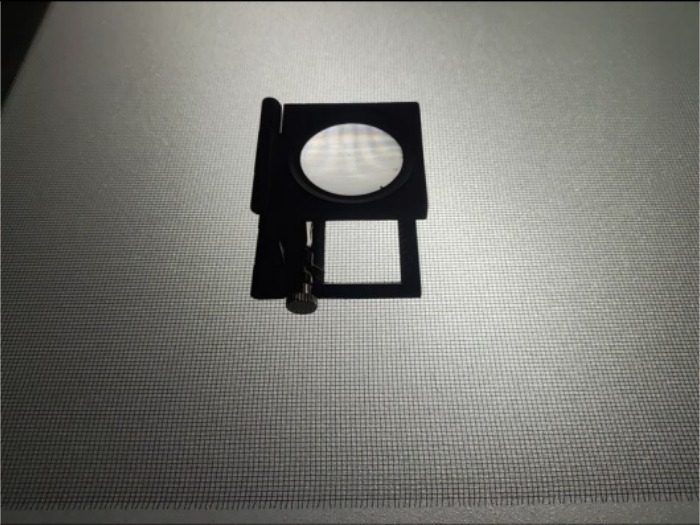

Uniform Mesh Holes: The mesh holes are uniform, not easy to loosen and deform, enhancing the support for filter paper.

Soft and Easy to Pleat: The screen is soft, easy to pleat, with uniform coating thickness and consistent color.

Customizable: Available in various sizes, wire gauges, openings, and patterns.

High-Quality Materials: Raw materials are sourced from certified suppliers and manufactured to the highest standards using an innovative process.

Advantages of Jiushen Epoxy Coated Aluminum Screen Mesh

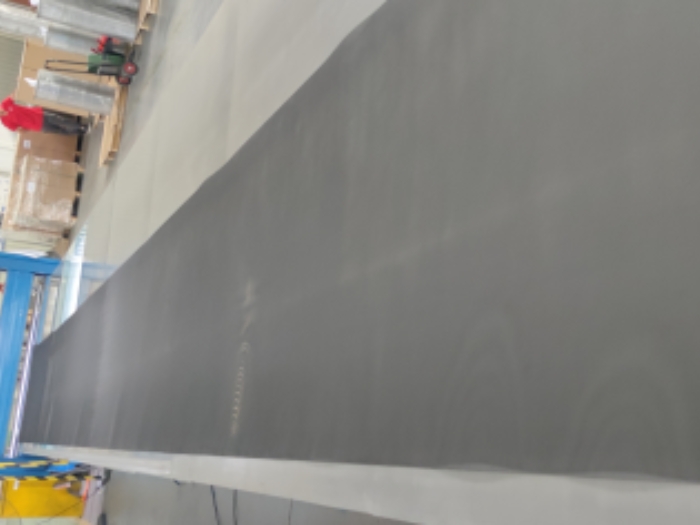

Dimensional Stability: The mesh is square without deformation, with a flat surface and maximum undulating height ≤10mm.
Controlled Powder Coating Amount: Powder coating amount is controlled at 20-35g/㎡, with moderate interleaving points.
Wide Finished Product Width: The width of the finished product can reach up to 1,600mm.
Certified Surface Treatment Powder: Uses low-temperature fast-curing oil-resistant matting resin paint and low-temperature curing weather-resistant matting polyester paint, both certified by RoHS and REACH.
Oil and Corrosion Resistance: Resistant to oil immersion and corrosion, passing detections of various hydraulic oil media worldwide under different temperatures and times.
Weather Corrosion Resistance: Meets ASTM B117-09 salt spray test standard, with no changes after continuous 96-hour testing.
Strong Adhesion: Passes H grade pencil test, 1kg/50cm impact test, scratch test, and anti-fatigue test.
High Bending Resistance: Can be folded through a steel rod with a radius of curvature of 1mm without surface cracks.
Soft Mesh Surface: Industrial selected high-quality steel and wire drawing annealing process, combined with new weaving process, results in a soft mesh surface with low elastic modulus.
Easy to Process: After coating, it's easy to fold and shape, with firmly bonded warp and weft wires that are not easy to fall off after processing.
Durable Edges: Edges will not fall off after slitting and cutting.
High Adhesion Force: The adhesion force of the coating interlacing point can reach 0.7kg.

Specification of Epoxy Coated Aluminum Screen Mesh

Mesh Material	Spec	Width (mm)	Length (m)	Application
AL5154 series	18x16/0.28	20-1500	≤1000	Air Filters
	18x16/0.24
	18x15/0.23
	30x30/0.3			Flame Arrester
Spec, size and color all can be customized by contact us
