5052 vs 5154 Aluminum Wire Mesh: Which Performs Better in High-Salt or Marine Environments?

Introduction

In marine engineering, coastal construction, offshore filtration systems, and salt-exposed industrial environments, aluminum wire mesh must withstand one of the most aggressive forms of corrosion exposure: chloride-rich saltwater atmospheres. Material selection directly determines service life, maintenance cost, and structural reliability.

Among commonly used 5000 series aluminum alloys, 5052 and 5154 aluminum wire mesh are frequently compared due to their similar magnesium-based chemistry and marine-grade positioning. However, subtle differences in composition significantly influence their corrosion resistance, mechanical strength, and long-term durability.

This article provides a detailed engineering comparison of 5052 vs 5154 aluminum wire mesh, focusing on real performance in high-salt and marine environments.

1. Alloy Fundamentals: 5052 vs 5154 Composition

Both alloys belong to the aluminum-magnesium (Al-Mg) 5000 series, which is widely recognized for excellent corrosion resistance in seawater conditions.

5052 Aluminum

· Magnesium: ~2.2–2.8%

· Chromium: present in small controlled amounts

· Designed for excellent corrosion resistance and formability

5154 Aluminum

· Magnesium: ~3.1–3.9%

· Slightly higher Mg content than 5052

· Designed for higher strength and improved structural performance

Key Insight

· 5052 = corrosion-optimized

· 5154 = strength-enhanced variant within similar corrosion class

2. Corrosion Resistance in Marine Environments

2.1 Saltwater Exposure Behavior

In marine environments, corrosion mechanisms include:

· Pitting corrosion (chloride attack)

· Crevice corrosion (moisture retention zones)

· Surface oxidation under salt spray

5052 Performance

· Excellent resistance to seawater and salt spray

· Stable oxide film formation

· Proven long-term marine usage in sheet and mesh applications

5154 Performance

· Also marine-grade corrosion resistance

· Slightly more sensitive than 5052 in long-term chloride exposure due to higher Mg content

· Better suited for structural applications where strength is prioritized

3. Mechanical Strength Comparison

5052 Aluminum Wire Mesh

· Moderate-to-high strength

· Excellent fatigue resistance

· Stable under cyclic loading in marine conditions

5154 Aluminum Wire Mesh

· Higher tensile and shear strength than 5052

· Better load-bearing capability in mesh structures

· Preferred when mechanical stress is a design driver

Engineering Trade-off

· 5052: durability + corrosion stability

· 5154: structural strength + stiffness

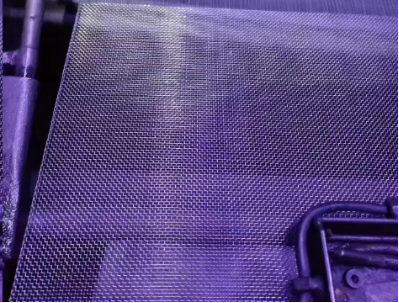

4. Performance in Wire Mesh Applications

Wire mesh introduces additional performance requirements:

· Flexibility during weaving

· Structural stability after forming

· Resistance to vibration and fatigue

· Resistance to chloride accumulation at junction points

5052 Wire Mesh Behavior

· Easier to form into fine mesh structures

· Better long-term stability in salt fog exposure

· Lower risk of localized corrosion at wire intersections

5154 Wire Mesh Behavior

· Stronger mesh integrity under mechanical load

· Better performance in heavy-duty screening or protective barriers

· Slightly higher forming resistance during production

5. Marine Environment Durability (Real-World Conditions)

Coastal Atmosphere (Salt Fog + Humidity)

· 5052: Excellent long-term stability

· 5154: Very good, but slightly higher corrosion sensitivity over long exposure cycles

Direct Sea Spray Exposure

· 5052: Preferred for continuous exposure environments

· 5154: Suitable but may require protective coating in extreme conditions

Offshore Structural Use

· 5052: Better for corrosion-critical mesh applications

· 5154: Better for load-bearing or reinforcement mesh roles

6. Fabrication and Processing Differences

5052 Manufacturing Behavior

· Excellent workability

· Easier weaving into fine mesh

· Lower risk of cracking during forming

5154 Manufacturing Behavior

· Higher strength increases forming resistance

· Requires more controlled weaving tension

· Better dimensional stability after forming

7. Cost and Lifecycle Considerations

5052 Aluminum Mesh

· Slightly lower cost

· Lower maintenance requirements in marine environments

· Longer corrosion-driven service life in salt exposure

5154 Aluminum Mesh

· Slightly higher cost due to strength characteristics

· Better mechanical lifespan under stress

· May require protective treatment in extreme marine exposure

8. Failure Modes in Marine Use

5052 Typical Risks

· Minimal corrosion-related failures under normal marine exposure

· Long-term pitting only in extreme chloride concentration zones

5154 Typical Risks

· Localized corrosion in stagnant salt zones over extended periods

· Mechanical deformation resistance is strong, corrosion resistance slightly less forgiving

9. Application-Based Selection Guide

Choose 5052 Aluminum Wire Mesh When:

· Environment is high-salt or coastal

· Corrosion resistance is the top priority

· Mesh is used for filtration, shielding, or protective barriers

· Long service life with minimal maintenance is required

Choose 5154 Aluminum Wire Mesh When:

· Mechanical strength is more important than maximum corrosion resistance

· Mesh is used in structural reinforcement or load-bearing systems

· Moderate marine exposure with controlled maintenance exists

10. Engineering Conclusion

Both 5052 and 5154 aluminum wire mesh belong to the same marine-grade aluminum family, but they serve different engineering priorities.

· 5052 delivers superior corrosion resistance and long-term stability in salt-rich environments

· 5154 provides higher mechanical strength with slightly reduced corrosion margin under extreme marine exposure

In high-salt or direct marine environments, 5052 is generally the more reliable long-term choice, while 5154 is better suited for hybrid applications where structural strength is equally critical.

Final Recommendation

For procurement teams and engineering buyers, selection should be based on a clear priority matrix:

· Corrosion-dominant environment → 5052

· Strength-dominant application → 5154

· Balanced requirement → project-specific evaluation needed

For marine-grade aluminum wire mesh solutions requiring stable performance in corrosive environments and industrial durability standards, Jiushen provides engineered mesh products designed for long-term reliability in demanding applications. Contact us right now!
