Top 3 Challenges in Mesh Coating for Filters — And How We Solve Them

Introduction

In the filtration industry — whether for automotive filters, HVAC systems, hydraulic filters, or industrial dust collectors — the quality and durability of filter mesh directly impact the overall performance and service life of the final product.

To enhance corrosion resistance, structural integrity, and long-term reliability, mesh coating — particularly epoxy coating — has become a widely adopted solution. However, achieving consistent, high-quality mesh coating is far from simple.

Filter manufacturers face several technical challenges that can compromise coating effectiveness, mesh reliability, and even the performance of the entire filter. In this article, we explore the top three challenges commonly encountered in mesh coating for filters — and explain the proven solutions we apply to help our customers overcome them and achieve consistent, production-grade results.

1. Why Mesh Coating Is Critical for Filters

Before diving into the challenges, it's essential to understand the role of mesh coating in filtration products.

Metal filter mesh — often made from plain steel wire (low carbon steel wire), or aluminium alloy wire — serves as:

· A structural support layer for filter media

· A protective barrier against mechanical damage

· A contributor to filter rigidity and shape retention

· A defense against corrosion, rust, and environmental degradation

However, uncoated metal mesh is vulnerable to:

· Oxidation and corrosion in humid or chemically aggressive environments

· Mechanical wear and deformation under pressure or vibration

· Poor adhesion with filter media, leading to structural failures

Mesh coating — such as epoxy resin — is applied to mitigate these risks and improve the durability and reliability of filter mesh in demanding applications.

2. Top 3 Challenges in Mesh Coating for Filters — And How We Solve Them

Challenge 1: Achieving Uniform and Defect-Free Coating Coverage

The Problem:

Uneven coating thickness, air bubbles, pinholes, or missed areas are common issues in mesh coating processes, especially with intricate woven wire mesh structures. These defects can lead to:

· Exposed bare metal prone to corrosion

· Weak points in mesh structure

· Inconsistent adhesion with filter media

· Reduced overall filter lifespan

Our Solution:

We utilize an optimized, multi-step coating process designed specifically for woven and expanded metal mesh:

✅ Surface Pre-Treatment:
All mesh undergoes thorough cleaning, degreasing, and surface activation to ensure optimal adhesion and eliminate contaminants.

✅ Controlled Coating Application:
We employ advanced spraying and dipping equipment with:

· Adjustable coating parameters for mesh of different sizes and complexities

· Precision atomization to ensure even coating distribution

· Multiple inspection points during the coating process

✅ Automated Quality Monitoring:
Our production lines are equipped with visual and thickness inspection systems to detect coating defects in real time.

✅ Post-Coating Curing:
The coated mesh passes through carefully calibrated curing ovens to ensure complete resin polymerization and eliminate hidden defects such as pinholes or weak spots.

This process guarantees consistent, defect-free coating coverage — even on complex mesh structures — providing reliable protection for every filter application.

Challenge 2: Ensuring Long-Term Adhesion and Durability Under Harsh Conditions

The Problem:

Mesh used in filters often operates under demanding environmental conditions, including:

· High humidity or water exposure

· Contact with chemicals, oils, or aggressive fluids

· Constant vibration or pressure fluctuations

· Extreme temperature variations

Inadequate coating adhesion or poor material selection can cause:

· Coating peeling or cracking

· Exposure of bare metal, leading to corrosion

· Mesh weakening or structural failure

· Premature filter replacement

Our Solution:

To ensure long-term coating performance, we:

✅ Select High-Quality Epoxy Resins:
We only use industrial-grade, corrosion-resistant epoxy coatings with:

· High chemical resistance

· Excellent adhesion properties

· Thermal stability for automotive, industrial, and marine applications

✅ Conduct Strict Material Compatibility Testing:
We test coating performance on various mesh materials, including:

· Plain steel wire ( low carbon steel wire）

· Aluminum alloy wire

· Galvanized wire

· Stainless steel (304, 316, 316L)

· Custom alloys upon request

✅ Perform Rigorous Adhesion and Durability Testing:
All coated mesh undergoes standardized tests, including:

· Salt spray (corrosion) tests

· Adhesion peel and scratch resistance tests

· Accelerated aging under temperature and humidity cycles

· Chemical resistance evaluation

This ensures our coated mesh maintains structural integrity and protective performance even in the most challenging operating environments.

Challenge 3: Balancing Coating Thickness with Mesh Functionality

The Problem:

While thicker coatings may enhance corrosion resistance, excessive coating can:

· Block mesh openings

· Reduce airflow or fluid flow rates

· Compromise filtration efficiency

· Add unnecessary weight or rigidity

· Create inconsistencies in pleated filter shapes

Our Solution:

Achieving the ideal balance between protection and functionality requires:

✅ Precise Coating Thickness Control:
Our automated processes maintain tight tolerances on coating thickness, typically:

· 20–35 microns for air filter mesh

· 30–50 microns for hydraulic or industrial filter mesh

· Custom thickness based on application requirements

✅ Coating Formulation Optimization:
We adjust coating viscosity and application parameters to:

· Preserve mesh flexibility

· Maintain consistent pore openings

· Ensure filter pleat uniformity

✅ Functional Testing After Coating:
Post-coating, all mesh undergoes:

· Visual inspection for blocked openings

· Airflow or permeability testing

· Structural integrity checks

This approach ensures coated mesh provides robust protection without sacrificing the critical filtration performance your products require.

3. Applications That Demand High-Quality Mesh Coating

Our advanced mesh coating solutions are widely used in:

· Automotive Filters: Cabin filters, engine air filters, oil and fuel filter supports

· HVAC and Industrial Air Filtration: HEPA filter mesh, pleated panel filters, clean room filtration

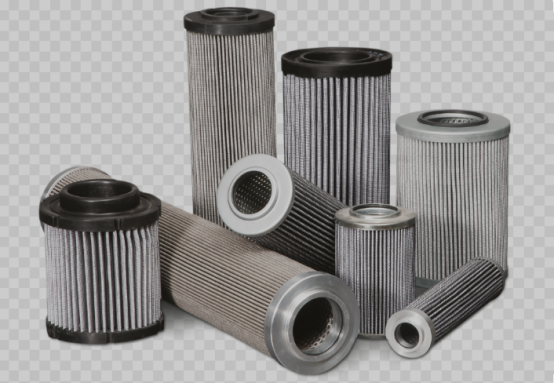

· Hydraulic and Fluid Filters: Mesh support for hydraulic cartridges, oil filter cores

· Dust Collection and Environmental Filtration: Industrial baghouse filter mesh, anti-corrosion dust filters

· Marine and Offshore Equipment: Corrosion-resistant mesh for filters exposed to saltwater and harsh conditions

Across these industries, reliable mesh coating translates directly to:

· Longer filter service life

· Reduced maintenance costs

· Improved product quality and customer satisfaction

4. Why Consistent Mesh Coating Protects Your Brand and Reduces Costs

Poor mesh coating doesn’t just affect technical performance — it impacts your bottom line. Common risks of low-quality coating include:

· Increased product failure rates

· Higher warranty claims

· More frequent filter replacements

· Damage to customer trust and brand reputation

By solving the technical challenges of mesh coating, we help filter manufacturers:

· Enhance product durability and performance

· Improve production efficiency with consistent materials

· Meet or exceed industry-specific quality standards

· Reduce total cost of ownership for end users

5. Conclusion: Solving Mesh Coating Challenges for Reliable Filter Performance

Mesh coating is a vital yet complex process that directly influences filter quality, durability, and performance. By addressing the top challenges — coating uniformity, long-term adhesion, and functionality balance — we deliver mesh solutions that meet the highest standards for demanding filtration applications.

With advanced materials, precise processes, and comprehensive quality control, we ensure your filter products:

· Perform reliably in harsh environments

· Maintain structural integrity over time

· Meet your production and quality requirements

Partner with Mesh Coating Experts You Can Trust

If your filters demand reliable, high-performance mesh coating, experience and process control make all the difference.

With years of expertise in producing coated mesh for filtration applications, Jiushen provides durable, consistent, and application-specific mesh coating solutions tailored to your needs.

Contact Jiushen today to learn how we can help solve your mesh coating challenges and support your filter production success.
