The Difference Between Plain and Twill Stainless Steel Wire Mesh

May. 26, 2023

Stainless steel wire mesh is a popular material for various applications due to its strength, durability, and resistance to corrosion. When choosing a stainless steel wire mesh, it's important to understand the differences between plain weave and twill weave. These two types of weaves are the most common in the industry and have distinct characteristics that make them suitable for different applications.

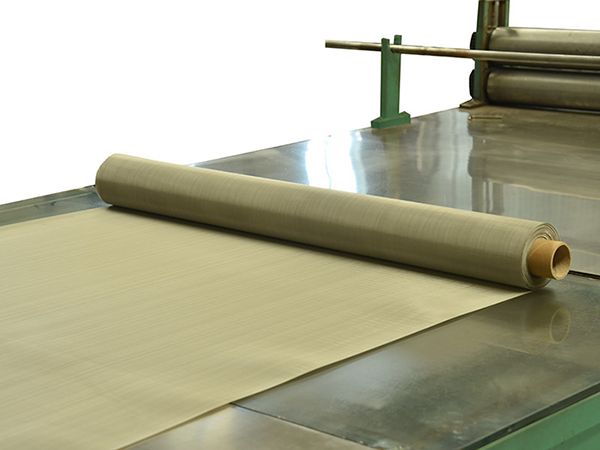

Stainless steel wire mesh


Introduction


Plain weave stainless steel wire mesh

Plain weave stainless steel wire mesh is the simplest and most common weave pattern. It consists of a simple crisscross pattern where each wire passes over and under the adjacent wires in alternating rows. The warp and weft wires are woven together in a one-to-one ratio, resulting in a tightly woven mesh with a square pattern. The wires are typically of the same diameter and are woven in a simple, tight pattern. This type of mesh is commonly used in filtration, sieving, and straining applications where a fine mesh is required. It is also used in architectural applications such as insect screens and security screens.


Twill weave stainless steel wire mesh

Twill weave stainless steel wire mesh is a more complex weave pattern than plain weave. It consists of a diagonal pattern where each warp wire passes over two weft wires and then under one, creating a pattern of diagonal lines. The weft wires are then passed over and under the warp wires in a similar manner, resulting in a more open, diagonal pattern. The wires used in twill weave mesh can vary in diameter, allowing for greater flexibility in terms of strength and filtration capabilities. Twill weave mesh is commonly used in industrial filtration and separation applications, as well as in the production of wire mesh baskets and screens.


Differences

One of the main differences between plain and twill weave stainless steel wire mesh is the open area. Plain weave mesh has a tighter weave pattern, resulting in a smaller open area. This means that it is more effective at filtering out small particles, but it also means that it may clog more quickly and require more frequent cleaning. Twill weave mesh, on the other hand, has a larger open area due to its diagonal pattern. This makes it more effective at handling larger particles and allows for greater flow rates, but it may not be as effective at filtering out smaller particles.


Another difference between the two types of mesh is their strength. Plain weave mesh is typically stronger than twill weave mesh due to its tighter weave pattern. This makes it more suitable for applications where strength and durability are important, such as in architectural or industrial settings. Twill weave mesh, while not as strong, is more flexible and can be woven with wires of varying diameters, making it more versatile for certain applications.


In terms of appearance, plain weave mesh has a more uniform and symmetrical pattern, while twill weave mesh has a more irregular and diagonal pattern. This can be a consideration in architectural applications where the appearance of the mesh is important.


Conclusion

Overall, the choice between plain and twill weave stainless steel wire mesh depends on the specific application and requirements. Plain weave mesh is best suited for applications where fine filtration is required and strength is important, while twill weave mesh is more suitable for applications where larger particles need to be filtered and greater flow rates are required. By understanding the differences between these two types of mesh, you can make an informed decision and select the right product for your needs.


Are you interested in learning more about plain or twill weave stainless steel wire mesh? Contact us today to secure an expert consultation!
