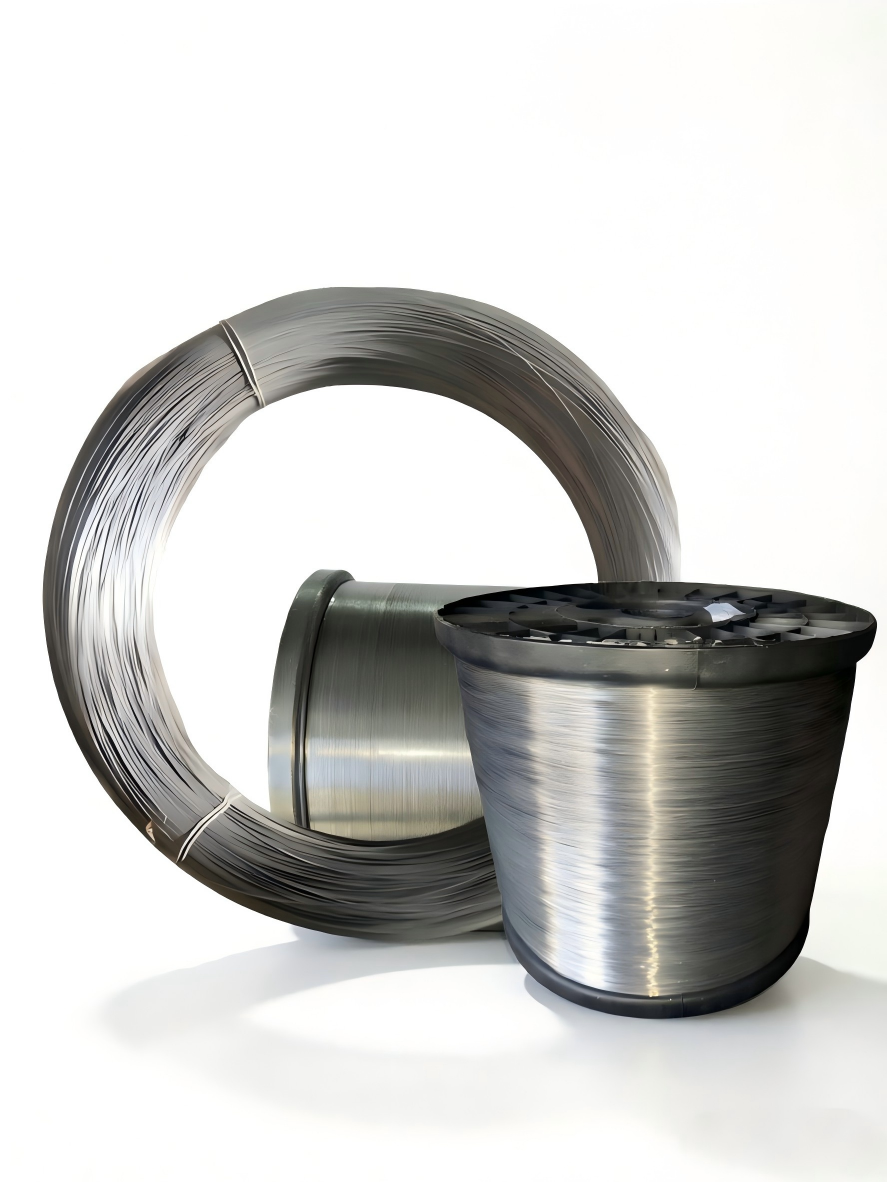

5000 series Aluminum Magnesium Alloy Wire

Product Description:

5000 series aluminum magnesium alloy wire is the preferred material for automotive air filter screens and aluminium alloy insect screens, and is also widely used in industries such as cables and bundling.

Due to its strong corrosion resistance among aluminum magnesium alloy series, it has an extremely strong resistance to seawater, salt spray and humid industrial atmospheres, earning the nickname "rust-proof aluminum."

Additionally, it offers superior lightweight advantages compared to other metallic materials.

Production Capacity:

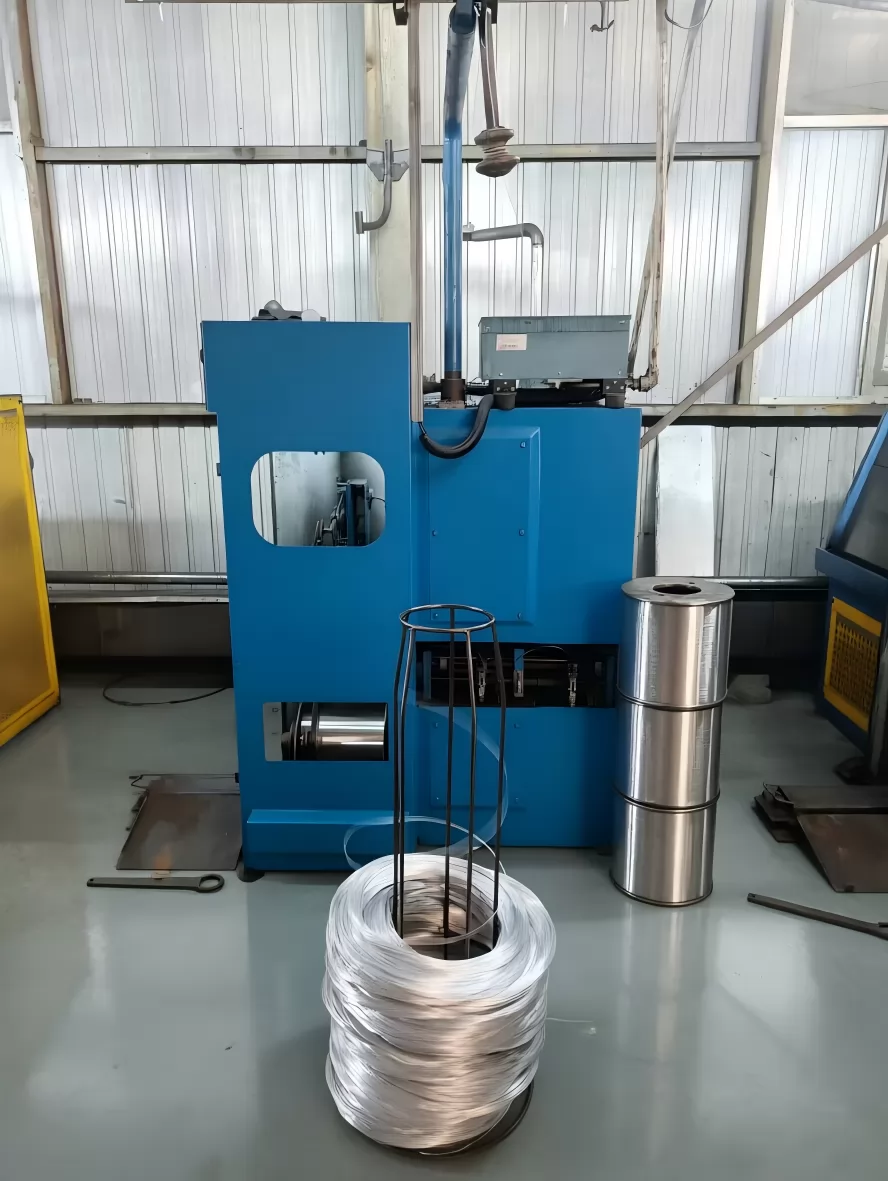

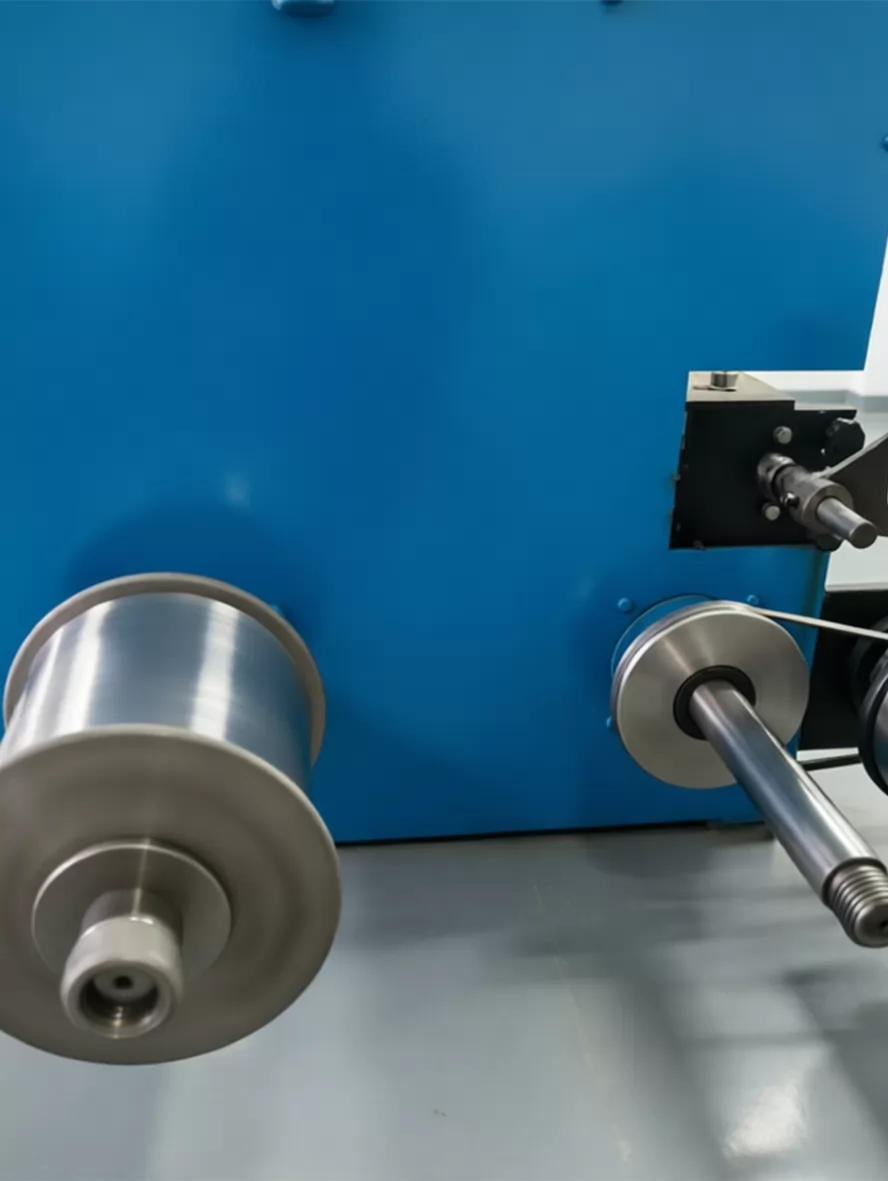

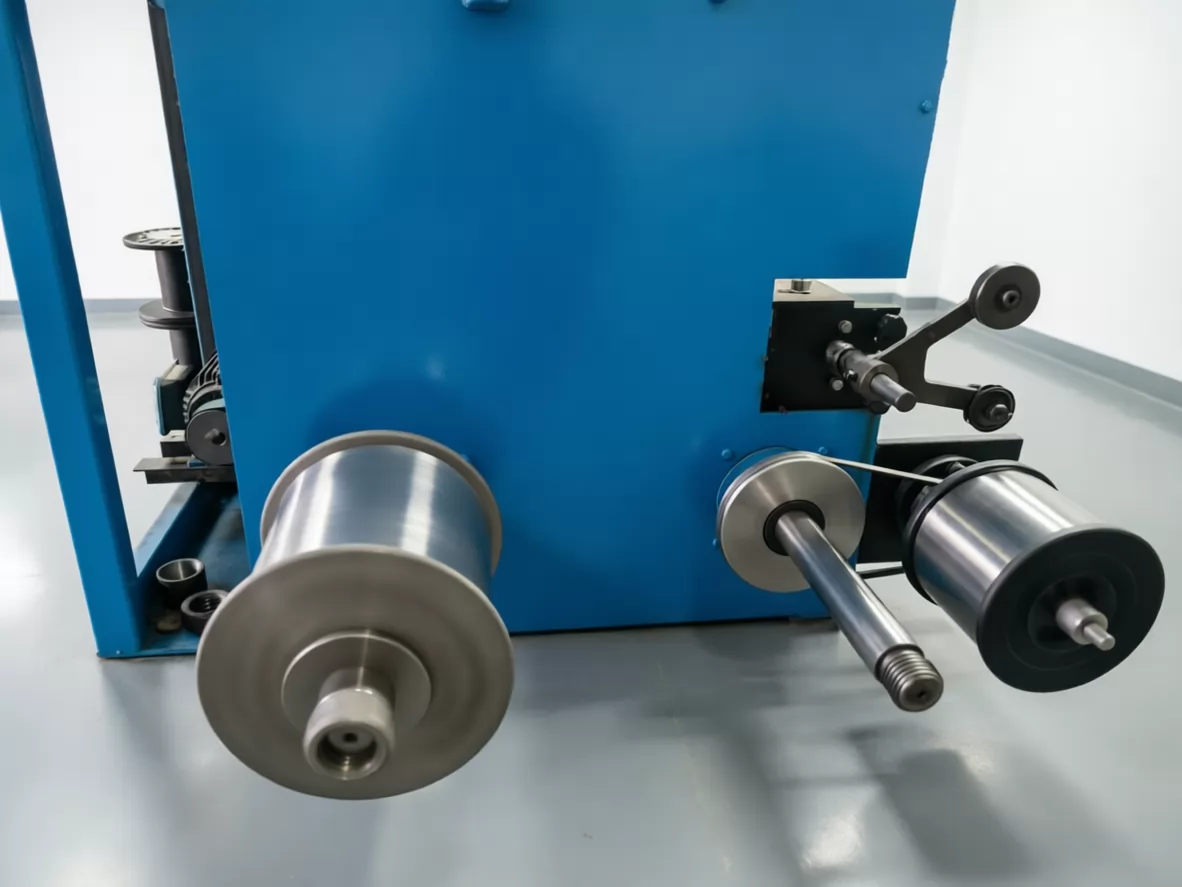

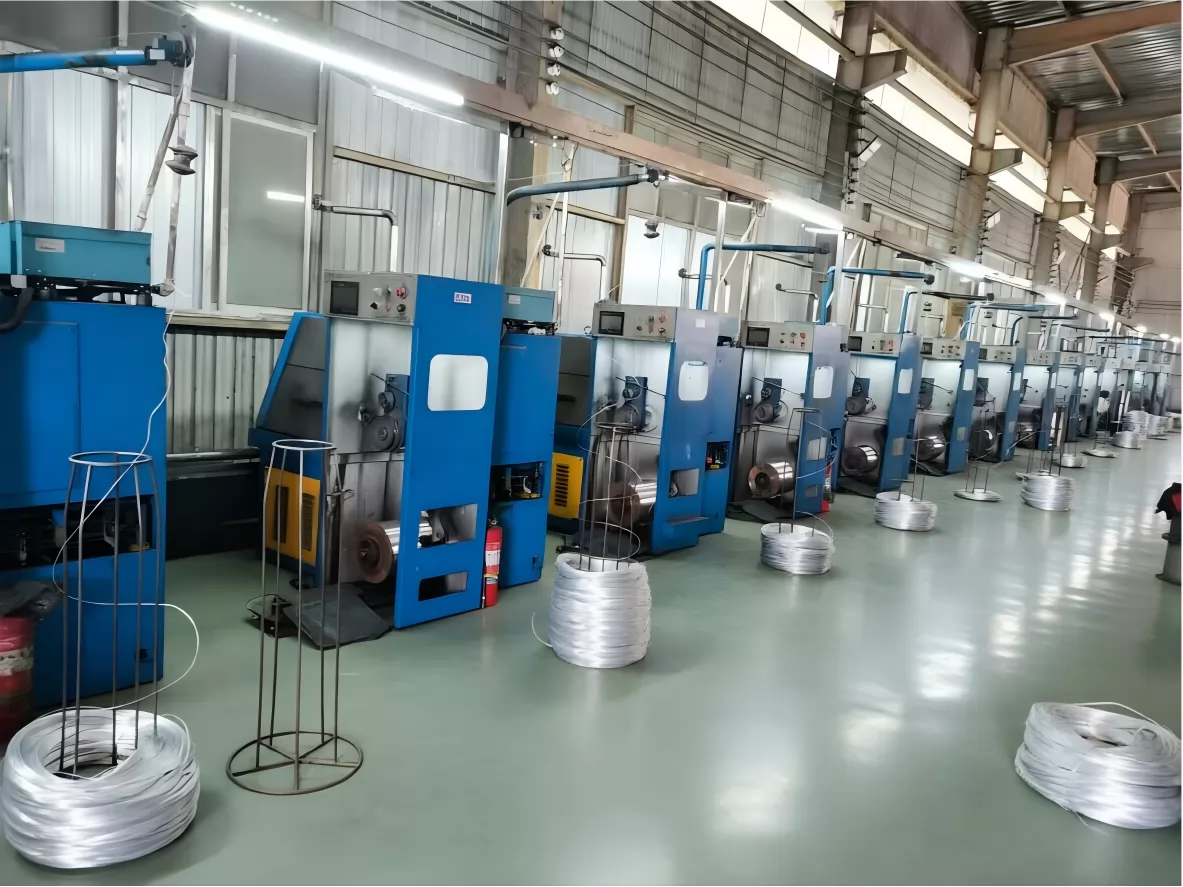

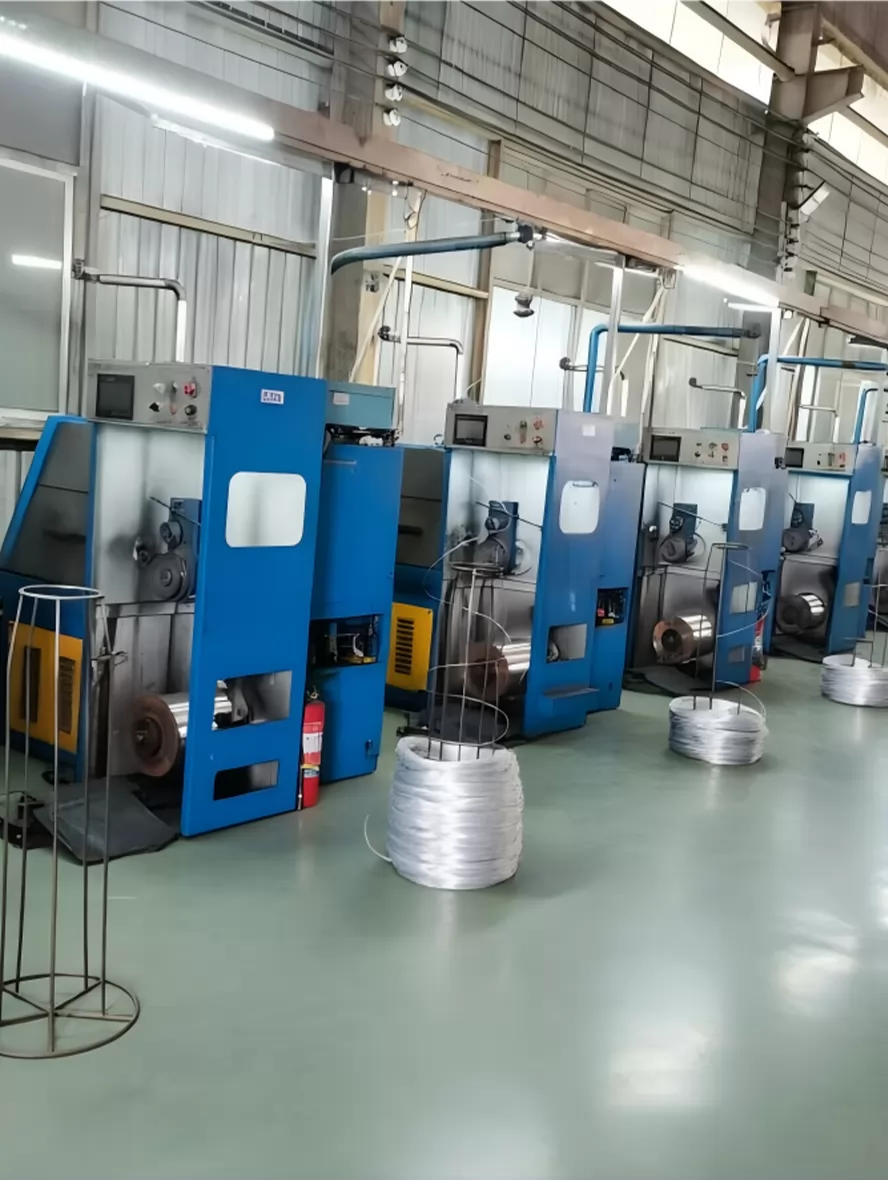

Jiushen is equipped with 20 sets fine-drawing CNC production lines, 2 sets medium-drawing CNC production lines, 1 set of heat treatment industrial furnace, and 30 heads of wire conductor spindle. Wire drawing fluid centrifugal filtration equipment and industrial cooling facility were also equipped to ensure the equipment operates normally and keeps the aluminium wire material clean and uncontaminated.

The aluminium wire can be produced in both cold-drawn and heat-treated forms, with an annual production capacity of up to 1,000 tons.

Product Technical Parameters:

Aluminum Wire Grade : 5154, 5056, 5052 etc.

Aluminum Wire Standard: ASTM B211M-19.

Aluminum Wire Diameter: φ 0.125 ~ 3.0mm; Tolerance ± 0.02 mm.

Tensile Strength: 170~350 MPa  ( varying with different heat treatment forms ).

Elongation: 1 ~1 5%  ( varying with different heat treatment forms ).

Packaging: Size of the spool core can be customized according to application scenarios.
