Weave Types and Uses of Stainless Steel Woven Mesh

Jun. 27, 2023

Stainless steel woven mesh is a versatile material with a wide range of weave types, each designed to serve specific purposes and applications. The weave type of the mesh directly impacts its strength, openness, filtration capabilities, and other characteristics. In this article, we will explore different weave types of stainless steel woven mesh and their common uses.


1. Plain Weave:

The plain weave is the most basic and widely used weave type in stainless steel woven mesh. It consists of a simple over-and-under pattern, where each weft wire passes alternately over and under each warp wire. This results in a balanced and tightly woven mesh with equal-sized openings. The plain weave provides excellent strength and stability, making it suitable for various applications such as particle filtration, insect screens, protective barriers, and reinforcing materials.


2. Twill Weave:

The twill weave is characterized by a diagonal pattern created by passing the weft wire over and under multiple warp wires. This weaving technique results in a staggered arrangement of the wires, creating a distinctive pattern on the mesh. Twill weave meshes offer higher strength and flexibility compared to plain weave meshes. They are commonly used in applications that require fine filtration, such as oil and gas filtration, hydraulic systems, chemical processing, and high-stress applications like conveyor belts and wire cloth for sieving.

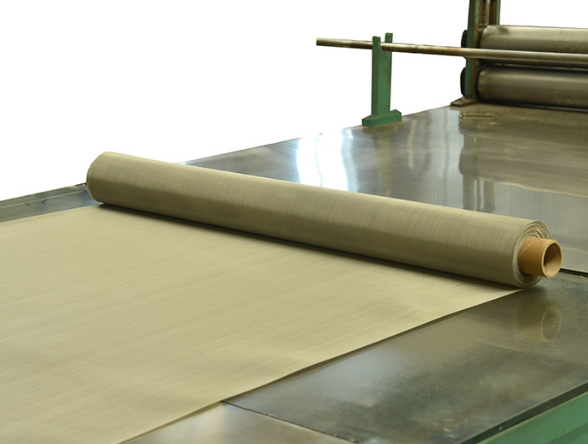

Stainless Steel Woven Mesh

Stainless Steel Wire Mesh


3. Dutch Weave:

Dutch weave meshes have a unique structure that provides excellent filtration capabilities. They are created by using thicker warp wires and finer weft wires. Dutch weave meshes have larger openings on the surface, gradually decreasing in size towards the bottom, resulting in a tapered pore structure. This design allows for enhanced particle retention and high flow rates. Dutch weave meshes are commonly used in applications that require precise filtration, such as liquid and gas filtration, pressure filters, fluidized beds, and separation of solids from liquids.


4. Reverse Dutch Weave:

The reverse Dutch weave is similar to the Dutch weave, but with reversed wire diameters. It consists of a finer warp wire and a thicker weft wire. This weaving technique produces a mesh with larger openings on the surface, providing increased mechanical strength. Reverse Dutch weave meshes are often used in applications that require high-pressure filtration, such as extrusion screens, hydraulic filters, and pressure vessels. They are also suitable for applications where particle retention and a smooth surface finish are essential.


5. Five-Heddle Weave:

The five-heddle weave is a specialized weave type that creates a unique crimped appearance. It is achieved by using multiple heddles or frames during the weaving process. The five-heddle weave offers enhanced stability and filtering capabilities due to its tightly packed and robust structure. It is commonly used in applications that require a combination of strength and fine filtration, such as architectural mesh, decorative screens, and heavy-duty sieving applications.


6. Twilled Dutch Weave:

The twilled Dutch weave combines the characteristics of twill weave and Dutch weave. It features a twill pattern with a dense weave structure similar to Dutch weave. This combination provides good strength, fine filtration, and high flow rates. Twilled Dutch weave meshes are commonly used in applications such as aerospace, petrochemical, and pharmaceutical industries, where precise filtration, high mechanical strength, and durability are required.


7. Other Weave Types:

In addition to the above-mentioned weave types, there are other specialized weaves available for specific applications. Some examples include the multi-layer weave, which combines multiple mesh layers for enhanced filtration, and the bamboo weave, which offers a distinctive aesthetic appearance for architectural and decorative purposes.



Stainless steel woven mesh comes in various weave types, each with its own unique characteristics and applications. From the basic plain weave to the specialized twilled Dutch weave, there is a weave type available to meet the diverse needs of different industries. Understanding the different weave types and their uses is essential for selecting the right stainless steel wire mesh for specific applications, ensuring optimal performance and functionality.
