The Ultimate Guide To Woven Wire Mesh Filters

Feb. 11, 2025

Introduction to Woven Wire Mesh Filters



Woven wire mesh filters are an essential component in various industries, providing precise filtration and separation capabilities. These filters are constructed using interwoven metal wires, forming a mesh structure with controlled pore sizes. Their durability, efficiency, and versatility make them an ideal choice for applications ranging from industrial processing to household filtration.



What Are Woven Wire Mesh Filters?



A woven wire mesh filter consists of metal wires intricately woven together to create a uniform and strong filtration medium. The mesh structure can vary based on wire diameter, weave type, and opening size, allowing customization for specific filtration needs. These filters are commonly manufactured using materials like stainless steel, brass, copper, aluminum, and galvanized steel, ensuring excellent resistance to corrosion and mechanical stress.

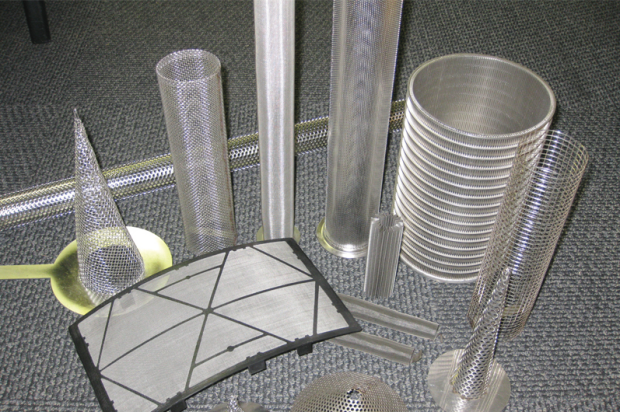

Woven Wire Mesh Filters



Types of Woven Wire Mesh Filters



1. Plain Weave Mesh

The simplest form of woven wire mesh, where each wire alternates over and under adjacent wires, creating a uniform and stable structure. It is widely used for basic filtration needs.



2. Twill Weave Mesh

A more intricate weave where each wire crosses over two and under two adjacent wires. This provides higher strength and finer filtration compared to plain weave mesh.



3. Dutch Weave Mesh

This weave features finer wires in the weft direction and heavier wires in the warp direction, enhancing filtration precision. Common types include plain Dutch weave and twill Dutch weave.



4. Reverse Dutch Weave Mesh

This variation is designed for ultra-fine filtration, featuring larger warp wires and smaller weft wires to enhance particle retention and strength.



5. Five-Heddle Weave Mesh

A specialized weave that improves flow rates while maintaining filtration efficiency, making it ideal for high-viscosity applications.



Advantages of Woven Wire Mesh Filters



1. Durability and Strength

Woven wire mesh filters are made from high-quality metals, making them resistant to wear, corrosion, and high temperatures. They offer long-lasting performance even in harsh environments.



2. Precision Filtration

With controlled pore sizes, these filters provide accurate particle separation, ensuring that only specified materials pass through.



3. Versatility in Applications

These filters are used in industrial, automotive, medical, aerospace, and food processing industries, making them suitable for a broad range of applications.



4. Easy Maintenance and Cleaning

Unlike disposable filters, woven wire mesh filters can be cleaned and reused, reducing operational costs and environmental impact.



5. Chemical and Temperature Resistance

Made from materials like stainless steel and titanium, they resist corrosive chemicals and extreme temperatures, ensuring reliable performance in demanding conditions.



Common Applications of Woven Wire Mesh Filters



1. Industrial Filtration

Used in oil and gas refining, chemical processing, and water treatment to remove contaminants and particles.



2. Air and Liquid Filtration

Essential in HVAC systems, hydraulic filtration, and water purification to ensure clean air and liquids.



3. Automotive and Aerospace

Found in fuel and oil filtration systems, preventing debris from entering sensitive engine components.



4. Medical and Pharmaceutical

Used in sterilization equipment, drug processing, and medical device manufacturing, ensuring high levels of purity.



5. Food and Beverage Industry

Ensures purity in beverage production, dairy processing, and edible oil refining by removing unwanted particles.



Factors to Consider When Choosing Woven Wire Mesh Filters



1. Material Selection

The choice of metal impacts durability, corrosion resistance, and temperature tolerance. Stainless steel is a popular choice for its strength and rust resistance.



2. Mesh Count and Opening Size

Mesh count refers to the number of openings per linear inch. A higher count means finer filtration, while lower counts allow greater flow rates.



3. Wire Diameter

Thicker wires provide greater strength but may reduce filtration efficiency. The balance between strength and permeability should be considered.



4. Weave Type

Different weaves offer various levels of strength and filtration precision. Dutch weave is ideal for fine filtration, whereas plain weave is used for general applications.



5. Operating Environment

Consider factors such as temperature, pressure, chemical exposure, and mechanical stress when selecting a woven wire mesh filter.



How to Maintain and Clean Woven Wire Mesh Filters



Proper maintenance extends the lifespan and efficiency of woven wire mesh filters. Here are some key cleaning methods:



1. Ultrasonic Cleaning

Utilizes high-frequency sound waves to remove contaminants from the mesh surface without damaging the structure.



2. Chemical Cleaning

Soaking the filter in appropriate chemical solutions dissolves accumulated debris and restores performance.



3. Reverse Flushing

For liquid filters, backwashing helps dislodge trapped particles and maintain flow efficiency.



4. High-Pressure Air or Water Blasting

Blowing compressed air or water at high velocity helps remove debris from the mesh surface without causing damage.



Conclusion



Woven wire mesh filters play a crucial role in diverse industries, offering high strength, precision filtration, and long-term reliability. By selecting the appropriate material, weave type, and maintenance methods, businesses can optimize filtration efficiency and longevity.



For businesses looking to invest in high-quality woven wire mesh filters, partnering with a reputable supplier ensures customization, durability, and superior performance.
