Differences Between Plain Mesh Weave & Plain Dutch Weave

Jan. 22, 2024

The characteristics and performance of sintered wire cloth are significantly influenced by the choice of mesh weave at the time of purchase. Therefore, it is crucial to select the appropriate weave that aligns with the intended application. Two widely used mesh weaves are the plain weave and the plain dutch weave.


The plain weave, being the most basic type, exhibits a straightforward pattern where each wire alternately crosses over and under the others, resulting in a robust and stable mesh structure. Careful consideration of the weave type is essential to ensure the sintered wire cloth meets the specific requirements of the intended job. The plain weave is flexible and can be used in a wide variety of ways.


A plain dutch weave is very much like a plain weave, except that one wire is heavier than the other. This makes the plain dutch weave stronger and sturdier than a plain weave and more tightly knit together for better filtering.

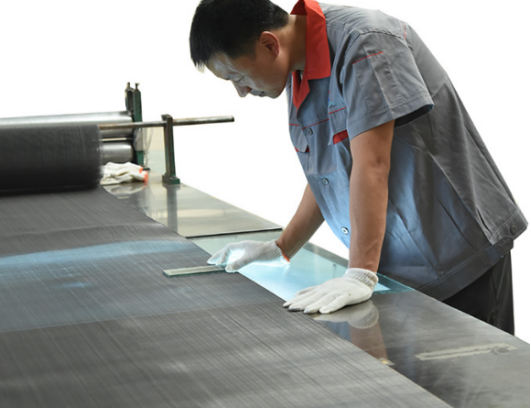

plain steel wire mesh


The most commonly used wire mesh weaves are shown below:


1. Dutch Weave


Dutch Weave, also known as 'Hollander' Weave, refers to woven wire mesh characterized by different diameters in the warp and weft wires, as well as distinct mesh counts in both directions. This weaving technique involves bringing the wires significantly closer during the weaving process, resulting in a more densely compacted media. The specifications for dutch Weave wire mesh are commonly described using mesh count per inch and aperture size in microns.


2. Plain Dutch Weave


Incorporating a plain weave pattern, the plain steel wire mesh distinguishes itself by having warp wires with a larger diameter than the weft wires. This weaving configuration tightly interlaces the weft wires, creating a robust wire cloth that maintains a favorable flow rate.


3. Plain Weave


The Plain Weave is a prevalent type of woven wire mesh widely employed in various applications. In this weave, each warp wire alternately crosses above and below every weft wire, and vice versa, forming a simple yet sturdy pattern. Typically, both warp and weft wires share the same diameter in this weave.


This weave finds extensive use in numerous commercial applications and filtration processes, especially in scenarios where a high flow rate is essential.


4. Twill Weave


In the Twill Weave, each weft wire alternately passes above and below every successive pair of warp wires, and vice versa. This weaving technique allows for the use of a heavier wire diameter compared to a plain weave wire mesh with a similar mesh count. The result is a robust and durable mesh structure.


5. Twill Dutch Weave


Similar to the plain dutch weave, the twill dutch weave incorporates a twill pattern but features a double layer of weft wires. This particular wire mesh, often known as micromesh wire cloth, is "light-tight" with a smooth surface and notable strength. However, it comes with a restricted flow rate, making it suitable for critical filtration applications, particularly under high-pressure conditions.


6. Reverse Dutch Weave


Woven typically in a plain weave style but in reverse compared to plain dutch weave, the Reverse dutch Weave features weft wires with a larger diameter than the warp wires. As a result, the warp mesh count surpasses that of the weft mesh count. This configuration imparts exceptional strength to the woven wire mesh, facilitating easy cleaning and ensuring a high flow rate.


Differences Between Plain Mesh Weave & Plain Dutch Weave


Depending on the type of mesh you choose at the time you are purchasing a sintered wire cloth will help determine the characteristics of that cloth and whether it will hold up to do the job you want it to perform. Depending on the type of weave changes the functionality of the sintered wire cloth, so it is crucial that you select the correct weave for the job you are looking to get done.


There are two types of weave that are the most common. Popular mesh weaves are the plain weave and the plain dutch weave. The plain weave is a very simple type of weave. When you examine the plain weave, you will notice that each wire crosses over and under the other, which creates a stable mesh. This type of weave is also flexible and can be used in multiple ways.


Now the plain steel mesh is very similar to the plain weave, however, the plain dutch weave contains a much heavier wire than the other type. This helps make the plain dutch weave much sturdier and stronger than a plain weave and is more tightly knitted together for a better filtering experience.


Dutch weave stainless steel wire mesh is commonly used as filter media. Plain dutch weaves offer strength and rigidity along with fine filtration capabilities. Twilled dutch weaves offer even greater strength and finer filtration ratings. In a twilled weave, the wires cross two under and two over, allowing heavier wires and higher mesh counts.

plain steel wire mesh
