What is the Difference Between Flame Arrester and Flame Screen?

Oct. 07, 2024

Understanding the difference between a flame arrester and a flame retardant screen is crucial, especially in industries dealing with combustible gases or flammable liquids. Though both devices are designed to prevent flames from spreading, they serve different purposes and work in unique ways. In this article, we’ll break down their differences, uses, and how they function to ensure safety in hazardous environments.



What is a Flame Arrester?



A permeable matrix of metal, ceramic or other heat resisting materials which can cool a deflagration flame, and any following combustion products, below the temperature required for the ignition of the flammable gas on the other side of the arrester.



How Does a Flame Arrester Work?



Flame arresters work by cooling and extinguishing the flame front before it can spread to the protected side of the device. It typically has a network of small passages or crimped metal ribbons that absorb heat, reducing the temperature of the flame and rendering it harmless.



Key Applications of Flame Arresters



Flame arresters are commonly used in industries like:

- Oil and gas refineries

- Chemical plants

- Pharmaceutical manufacturing

- Storage tanks and vent systems



They are essential in preventing explosions and maintaining safety standards in environments where flammable gases and vapors are prevalent.

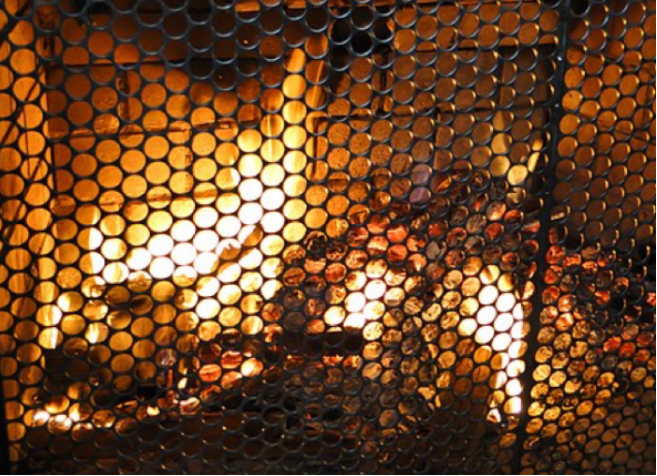

flame retardant screen


What is a Flame Screen?



A portable or fitted device incorporating one or more corrosion resistant wire woven fabrics of very small  mesh which is used for preventing sparks from entering a tank or vent opening or, for a short time, preventing the passage of flame.



How Does a Flame Screen Work?



Flame screens work by providing a barrier that dissipates heat from a flame, preventing it from entering a vent or other small opening. The mesh breaks up the flame and lowers its temperature below the ignition point of the vapor, stopping the fire from spreading.



Common Uses of Flame Screens



Flame screens are often used in:

- Marine vessels

- Fuel tank vents

- Small containers with flammable liquids



Their simple design makes them suitable for basic protection against flame propagation in smaller, less complex systems.



Key Differences Between Flame Arresters and Flame Screens



Functionality and Complexity



The flame arrester is a more complex device designed to stop a flame in its tracks while allowing the passage of gases or vapors. It’s often used in pipelines and larger industrial systems. A flame screen, on the other hand, is a more basic device intended for smaller applications, like vents or small tanks.



Applications and Uses



- Flame Arresters are used in high-risk environments, such as refineries or chemical plants, where controlling flame spread through pipes or large vent systems is crucial.

- Flame Screens are typically found in lower-risk applications, like fuel tank vents on marine vessels or small containers where a simple barrier can stop a flame.



Design and Structure



- Flame Arresters have an intricate design, often consisting of metal plates or crimped ribbons that can absorb the heat of the flame.

- Flame Screens consist of fine metal meshes, which are simpler and easier to install but are suited for less demanding safety situations.



Which One Should You Use?



Consider the Risk Level



The choice between a flame arrester and a flame screen depends largely on the level of risk and the environment. If you’re dealing with larger volumes of combustible gas or more complex systems, a flame arrester is likely necessary. For smaller, lower-risk areas, a flame screen can often provide adequate protection.



Maintenance and Inspection



Both flame arresters and flame screens require regular maintenance to ensure they are functioning correctly. However, flame arresters generally need more detailed inspections due to their more complex design and crucial role in safety-critical systems.



Conclusion



In summary, both flame arresters and flame screens are vital components in safety systems that deal with flammable gases and vapors. While flame arresters are designed for more complex, high-risk environments, flame screens provide simpler protection for smaller systems. Understanding the distinctions between these two devices ensures that you choose the right safety measure for your specific needs.



FAQs



1. Can I use a flame screen instead of a flame arrester?

It depends on the application. Flame screens are suitable for smaller, low-risk environments, but flame arresters are necessary for larger or more dangerous situations.



2. How often should I inspect a flame arrester?

Flame arresters should be inspected regularly, usually every 6 to 12 months, depending on the risk level and industry standards.



3. Are flame arresters and flame screens interchangeable?

No, flame arresters and flame screens serve different purposes and are designed for different levels of safety. Always use the appropriate device for your specific application.



4. Can a flame screen stop an explosion?

A flame screen is not designed to stop explosions. It is mainly intended to prevent flames from passing through small openings, not to control larger, more dangerous flame fronts.



5. What materials are flame arresters and flame screens made from?

Flame arresters are typically made from metal, with intricate designs to absorb heat, while flame screens are usually made from fine metal meshes or perforated plates.
