Metal wire fabric, often referred to as wire mesh, is a versatile and widely used material in various industries. Its structure consists of interlaced metal wires that form a grid-like pattern, offering excellent strength, durability, and flexibility. In this article, we will explore the fundamentals of metal wire fabric and the process behind its production.

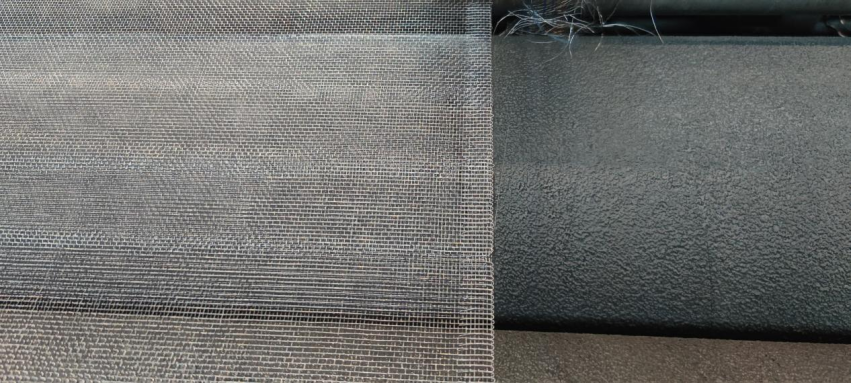

Metal wire fabric is made up of thin metal wires woven or welded together to form a mesh with uniform openings. The mesh can be created using various metals, including stainless steel, aluminum alloy, copper, and galvanized steel, plain steel etc, depending on the intended use. The openings or gaps between the wires can vary in size, from microns for fine mesh used in filtration to several inches for larger-scale applications like fencing.
Key Properties of Metal Wire Fabric:
- High Strength: Metal wire fabric provides excellent tensile strength, making it ideal for heavy-duty applications.
- Flexibility: It can be bent, shaped, and manipulated without losing its structural integrity.
- Corrosion Resistance: When made from materials like stainless steel or coated with protective layers, it resists rust and corrosion.
- Versatility: It is suitable for a wide range of applications, from construction and security to decorative uses.
There are several types of metal wire fabric, each designed for specific purposes:
1. Welded Wire Mesh: Made by welding intersecting wires at their junctions, this type offers strong, rigid mesh ideal for heavy-duty fencing, cages, and concrete reinforcement.
2. Woven Wire Mesh: Created by weaving metal wires together, this type is highly flexible and used in applications requiring filtration, such as sieves and industrial screens.
3. Knitted Wire Mesh: Made by interlocking loops of wire, it is commonly used in filtration, mist eliminators, and gaskets.
4. Expanded Metal Mesh: This mesh is created by cutting and stretching metal sheets, forming diamond-shaped openings. It is lightweight yet strong, used in walkways, grating, and architectural designs.
The production of metal wire fabric involves several steps, each contributing to the quality and characteristics of the final product. Let's break down the fundamental processes:
The first step in making metal wire fabric is selecting the appropriate raw material. The choice of metal, such as stainless steel, mild steel, or aluminum, depends on factors like the application, desired strength, corrosion resistance, and budget.
Once the raw metal is selected, it is drawn into thin wires through a process known as wire drawing. In this process, a metal rod is pulled through a series of progressively smaller dies, reducing its diameter and increasing its length. This step is critical for achieving the required wire thickness and tensile strength.
To enhance the wire's properties, such as corrosion resistance, the surface may undergo treatments like galvanization (coating with zinc), annealing (heat treatment to increase flexibility), or epoxy coating. The surface treatment ensures the wire's longevity and performance in harsh environments.
Depending on the type of metal wire fabric being produced, the wires are either woven or welded together:
- Woven Wire Fabric: In this method, wires are woven in a crisscross pattern, similar to textile weaving. The wires may be plain-woven or crimped to provide additional strength and rigidity.
- Welded Wire Fabric: Here, wires are welded at their intersections using electric resistance welding. This process creates a strong, fixed joint, making the mesh suitable for load-bearing applications.
Once the mesh is formed, it is cut into sheets or rolls of the desired size. The edges may be trimmed, and additional treatments, such as coating with paint or applying a protective layer, may be performed to enhance durability and aesthetics.
1. Durability: Metal wire fabric is highly durable and can withstand harsh environmental conditions.
2. Ease of Installation: It is easy to install and can be cut to fit specific dimensions.
3. Low Maintenance: It requires minimal maintenance, especially when made from corrosion-resistant materials.
4. Cost-Effective: The material offers a cost-effective solution for many applications, providing excellent performance at a relatively low price.
When selecting metal wire mesh for a project, consider the following factors:
- Material Type: Choose a material that matches the environment and the expected exposure to elements like moisture or chemicals.
- Mesh Size and Wire Diameter: Ensure the mesh size and wire thickness meet the specific requirements of the application.
- Coating: Opt for coated mesh if the material will be exposed to corrosive environments.
Metal wire fabric is an essential component in various industries, offering unmatched versatility, strength, and durability. Understanding the different types of metal wire fabric and their manufacturing processes can help you make informed decisions when selecting the right product for your needs. Whether for construction, filtration, or security, metal wire fabric provides a reliable and efficient solution. For more information or to source high-quality products, feel free to contact us as your trusted supplier of metal wire fabric.
